3. Remove the Primer Valves See Primer Valves on page 241.
4. Remove the Drop Detector
See Drop Detector on page 255.
5. Remove the Right Connector Cover
See Connector Cover, Right on page 236.
6. Remove the Maintenance Cartridge
See the User’s Guide.
7. Remove the Right Rear Trim
See Rear Trim, Right on page 344.

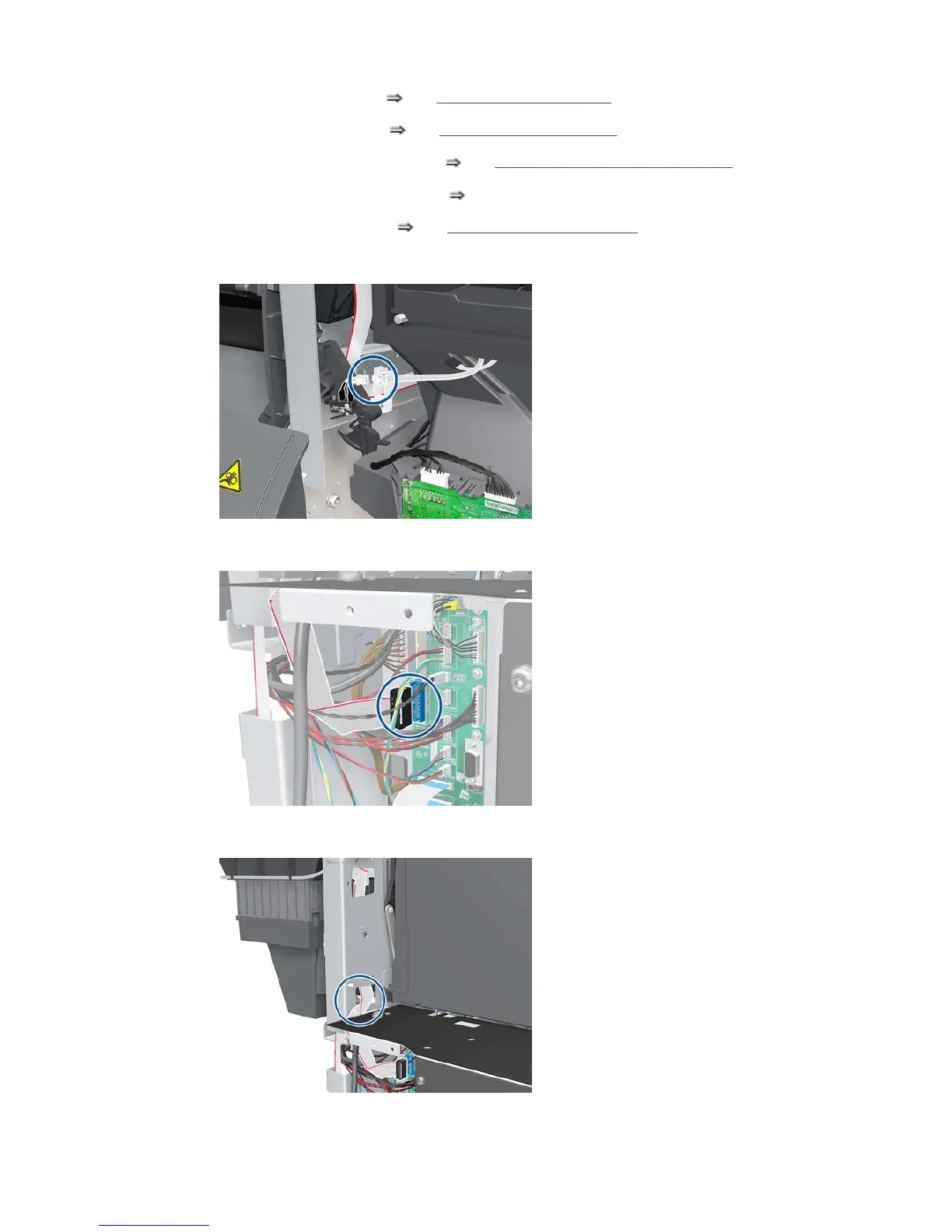

8. Disconnect the cable from the Maintenance Cartridge Door Switch.
9. Disconnect the Service Station cable (labelled “SS and DD”) from the Interconnect PCA.
10. Unroute the Service Station cable.
ENWW
Disassembly order
245
