4. Remove the Right Smart Roll-loading System Cover See Smart Roll-loading System Cover, Right
on page 258.
5. Open the Smart Roll-loading System Door.

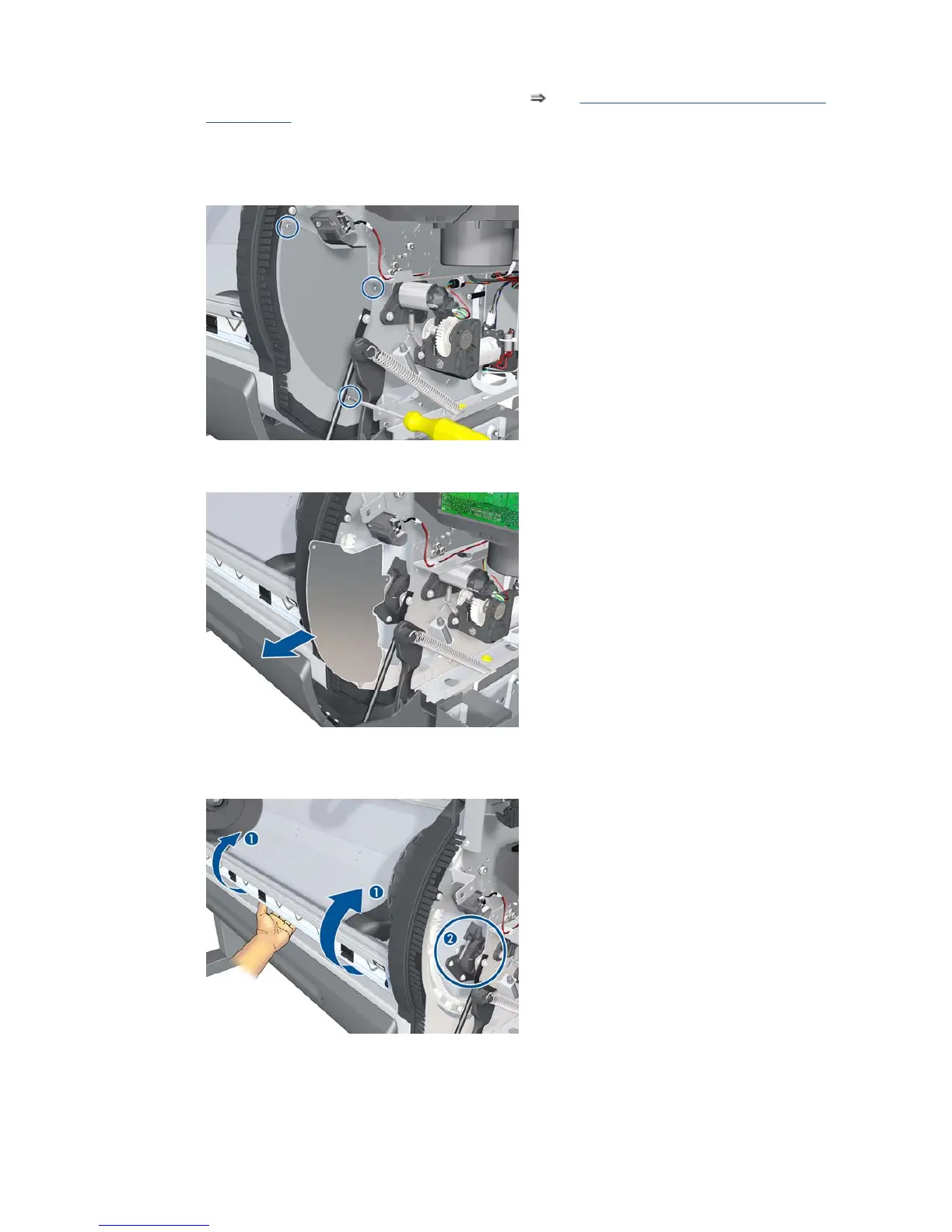

6. Remove three T-10 screws.
7. Remove the Roller Cover.
8. Rotate the Smart Roll-loading System manually (1) until the gear to be replaced can be seen
through the hole in the side plate (2).
272 Chapter 9 Printer part removal and installation ENWW
