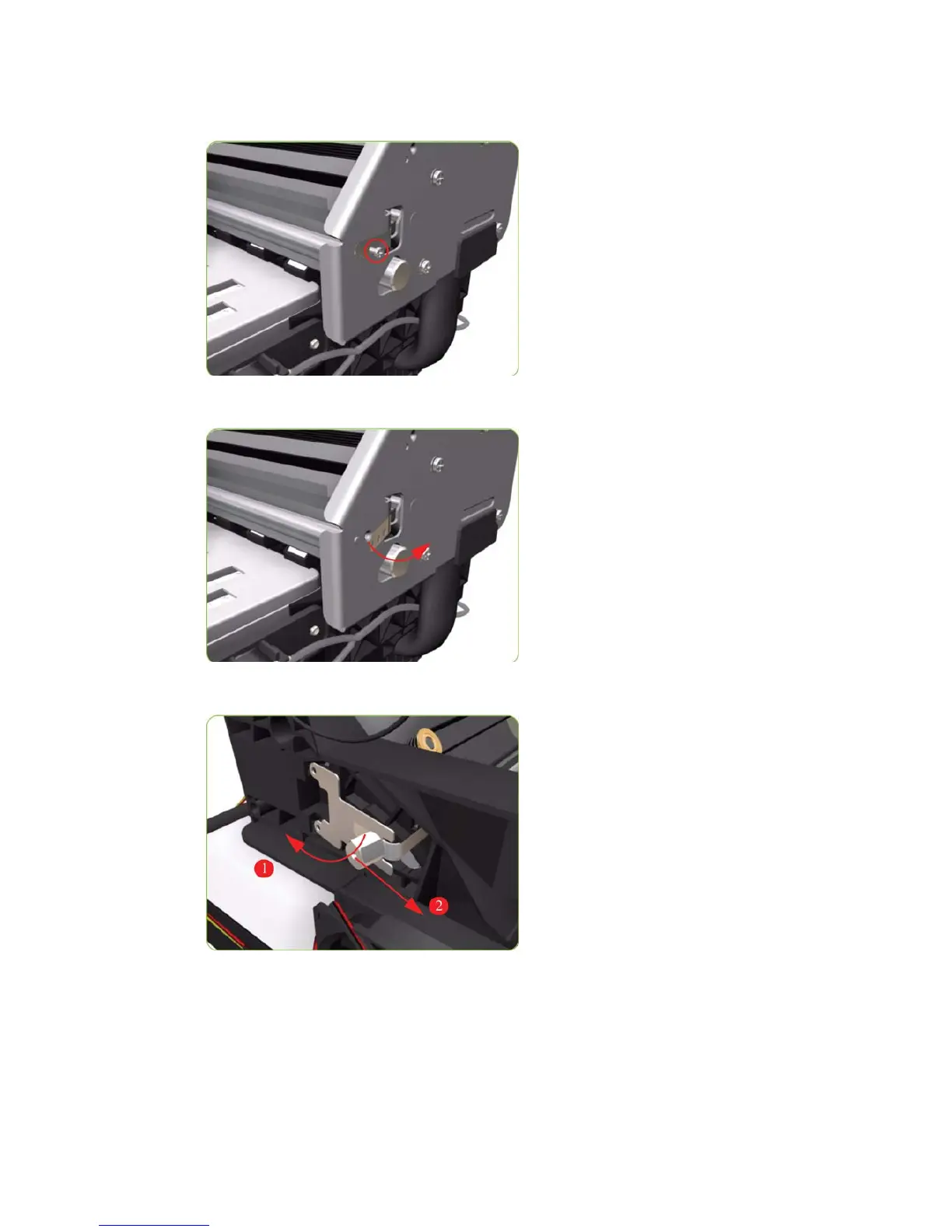

6. Remove one T-10 screw (Type I) that secures the Encoder Strip on the right-hand side of the
printer.
7. Release the Encoder Strip from the locating pins on the right-hand side of the printer.
8. Release the Spring Clip from the Bracket on the left-hand side of the printer.
9. Carefully pull the Encoder Strip out of the left-hand side of the printer.
296 Chapter 9 Printer part removal and installation ENWW
