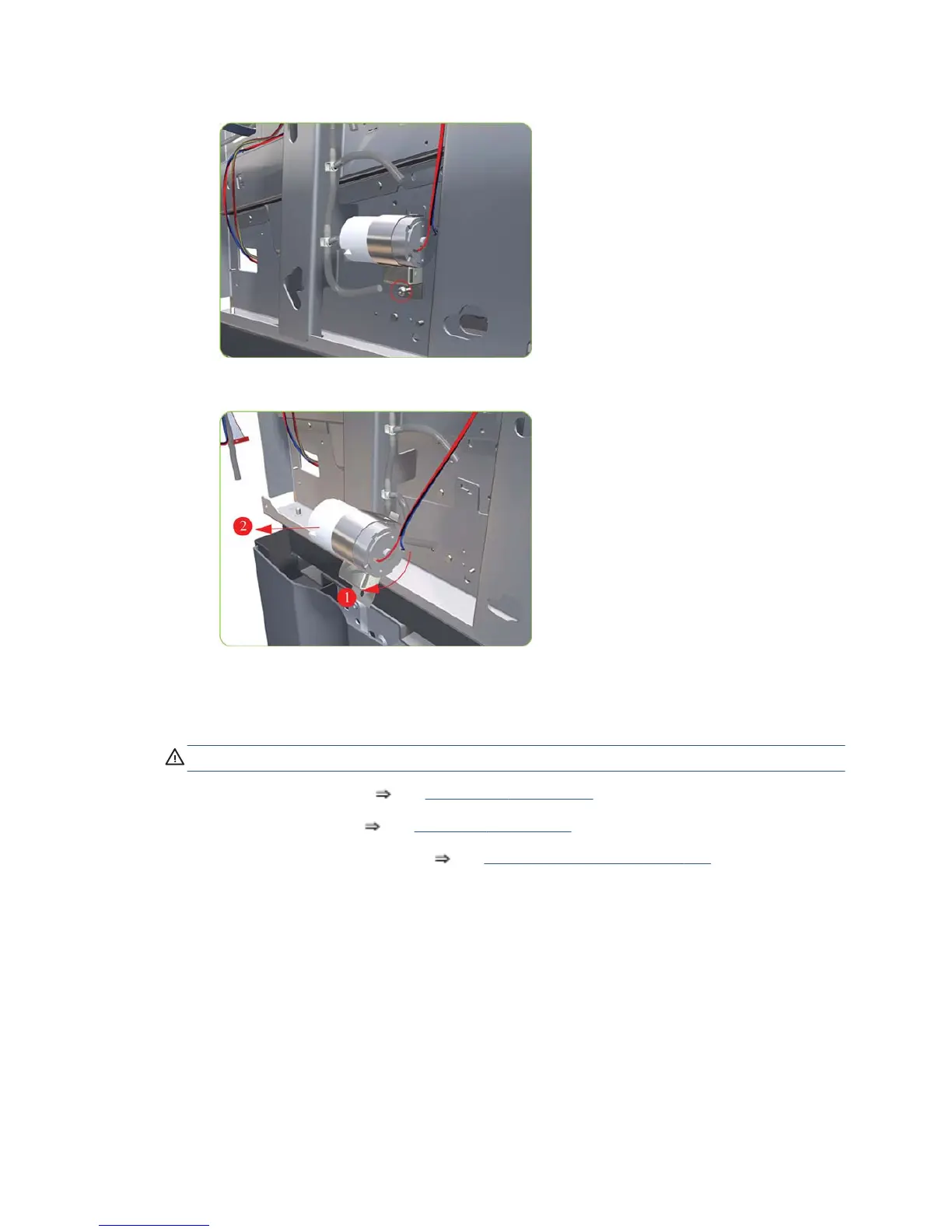

18. Remove one T-20 attachment screw from APS 1 (Top unit).
19. Remove APS 2 (Bottom unit) from the printer.
Scan-Axis Motor
Removal
WARNING! Switch off the printer and remove the power cable.
1. Remove the Right Cover See Cover, Right on page 224.
2. Remove the Left Cover
See Cover, Left on page 227.
3. Remove the Left Connector Cover
See Connector Cover, Left on page 237.
ENWW
Disassembly order
321
