HP DESIGNJET T7100 Monochrome Series

Left Cover
Removal

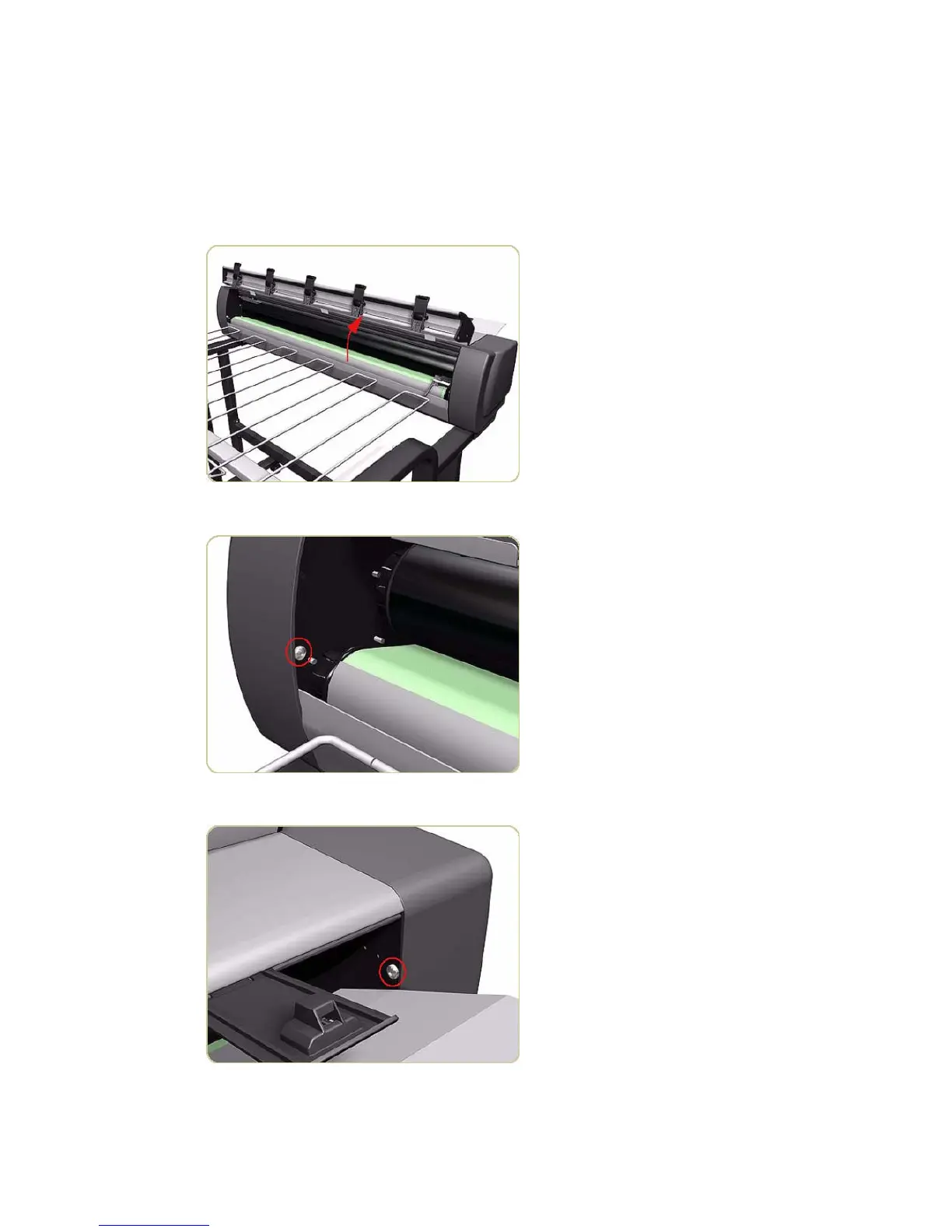

1. Switch off the stacker and remove the power cable.
2. Open the Front Cover.
3. Remove one screw that secures the Left Cover.
4. Remove one screw that secures the Left Cover from the rear.
418 Chapter 10 Stacker part removal and installation ENWW
