HP DESIGNJET T7100 Monochrome Series - Page 442

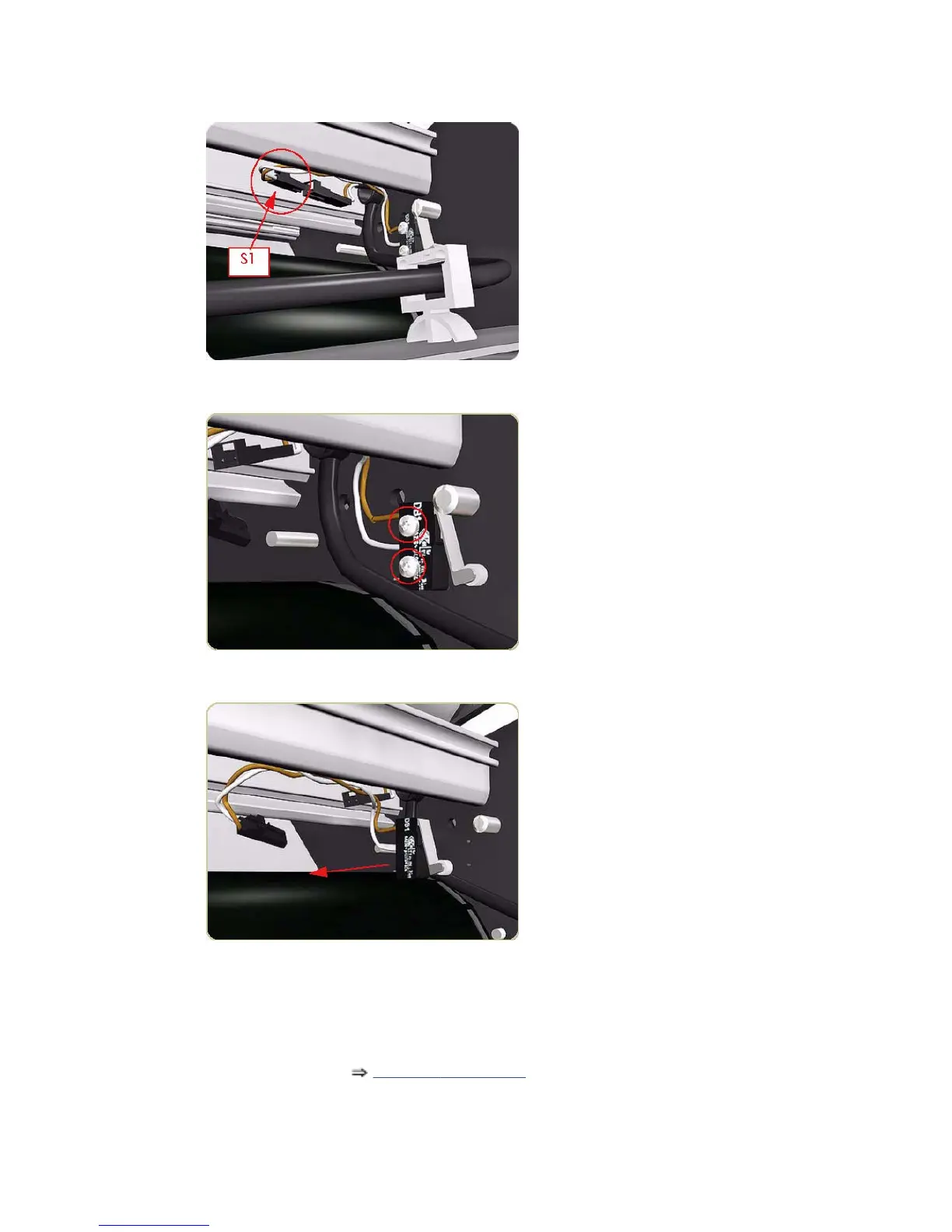

5. Disconnect the cable from the Front Cover Sensor.
6. Remove two screws that secure the Front Cover Sensor.
7. Remove the Front Cover Sensor.
Safety Temperature Sensor
Removal
1. Remove the Left Cover
Left Cover on page 418.
432 Chapter 10 Stacker part removal and installation ENWW
