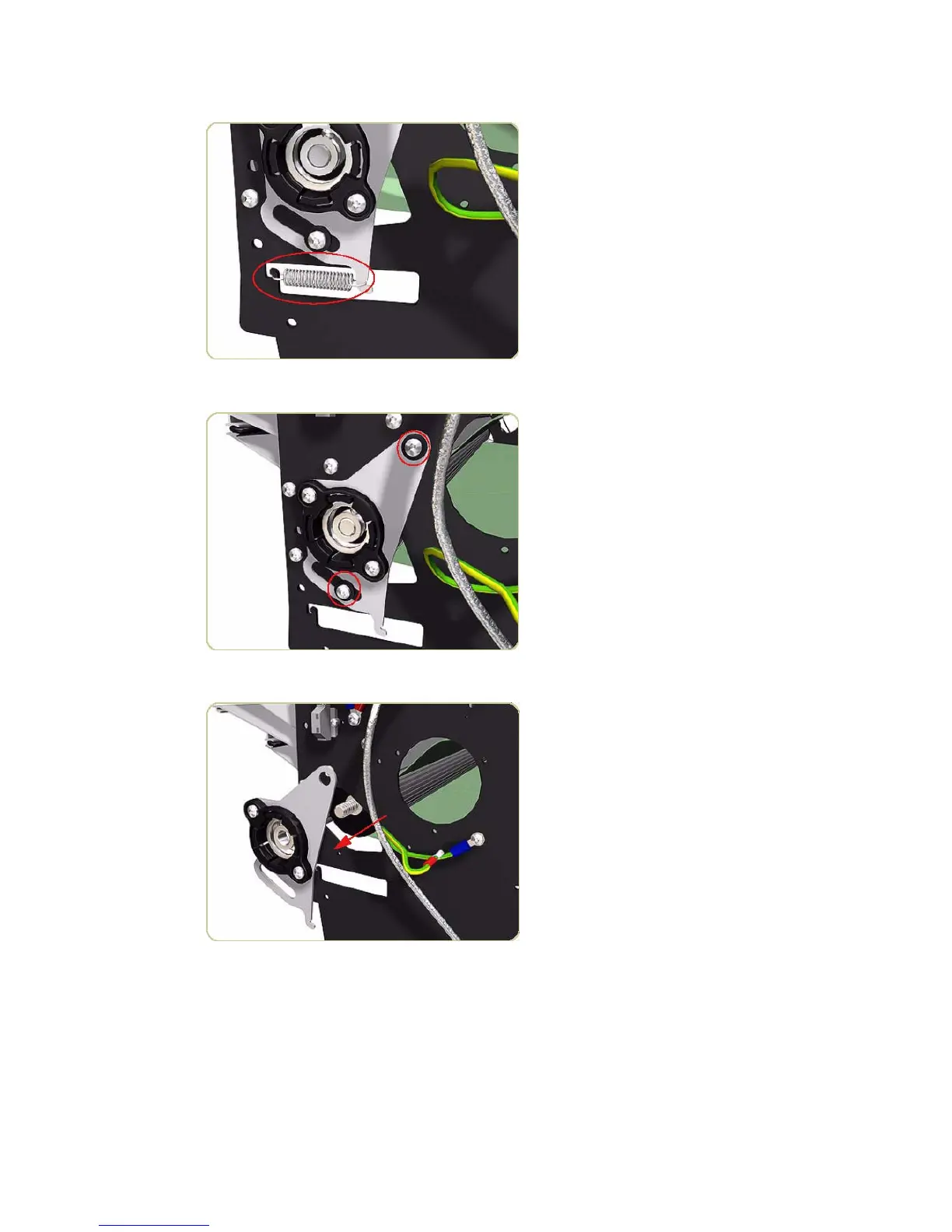

9. Remove the spring from the left side of the stacker.
10. Remove two screws and washers that secure the Left Input Roller Bearing.
11. Remove the Left Input Roller Bearing.
460 Chapter 10 Stacker part removal and installation ENWW
