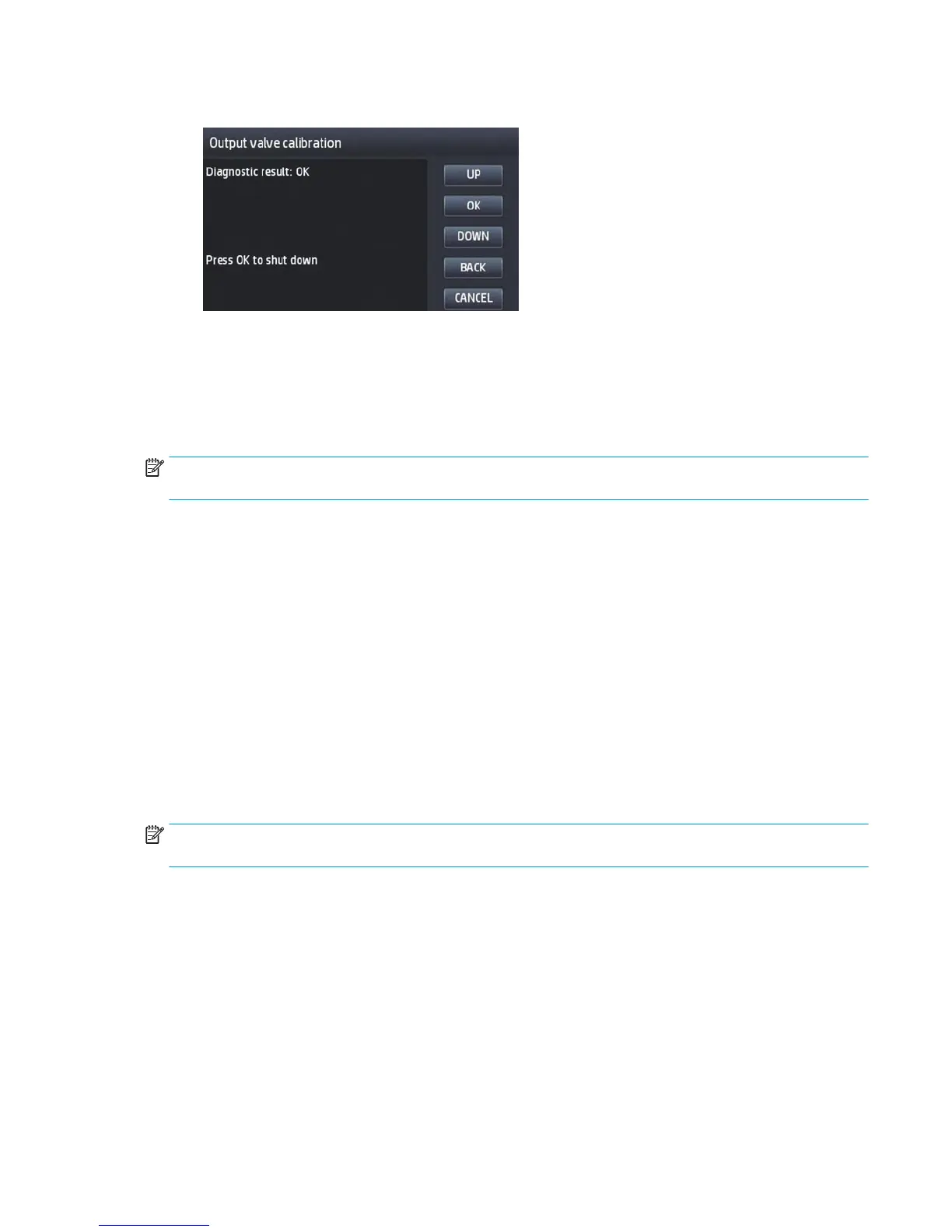

5. By pressing OK in the next screen, the printer will shut down automatically.
6. Power – on the printer, and print (for example a Drawing Demo print) to the stacker, to verify the
success of the calibration.
Pinches Lifter Test
Perform the Pinches Lifter test as follows:
NOTE: Perform this test with the printheads and the tubes system installed in order to get values that can
be correctly compared.
1. In the Diagnostics menu, select Pinches Lifter.
2. The product starts the Pinches Lifter PWM control test to check the subsystem. As the test executes the
Front Panel displays the following messages:
●
Initializing
●
Performing movements
If there is a failure at any point during the test, the Front Panel displays the relevant System Error Code.
To troubleshoot any displayed error codes, see System Error Codes.
3. Press OK to end the test and restart the product.
Stacker Ramps Test
Perform the Stacker Ramps test as follows:
NOTE: Perform this test with the printheads and the tubes system installed in order to get values that can
be correctly compared.
1. In the Diagnostics menu, select Stacker Ramps.
2. The product starts the Stacker Ramps PWM control test to check the subsystem. As the test executes
the Front Panel displays the following messages:
●
Initializing
●
Performing movements
If there is a failure at any point during the test, the Front Panel displays the relevant System Error Code.
To troubleshoot any displayed error codes, see System Error Codes.
3. Press OK to end the test and restart the product.
ENWW Diagnostic Tests and Utilities 173
