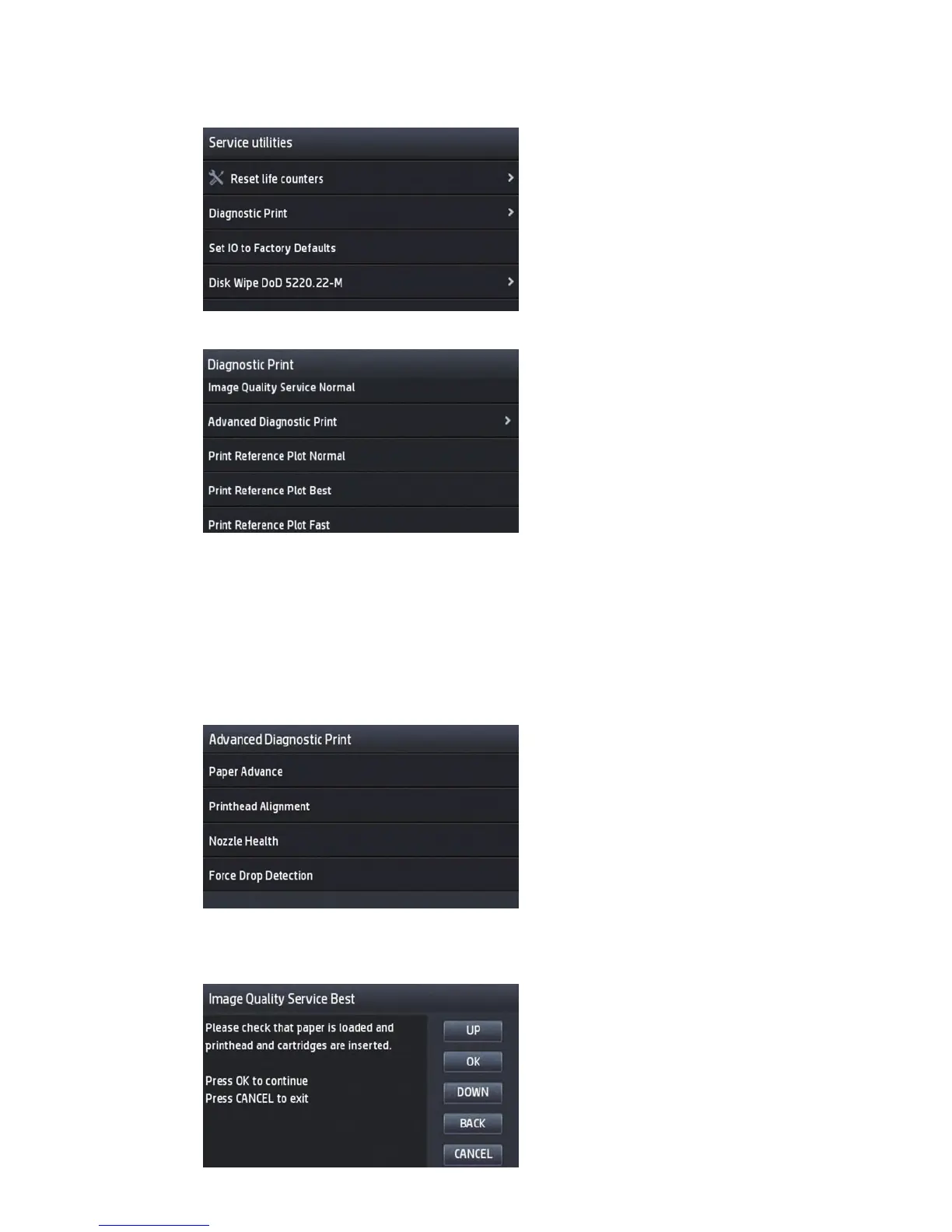

3. In the printer's front panel, select Diagnostic image.
In Diagnostic Print, you can select the Image Quality Service prints or the Diagnostic Print:
You have the option to print the Image Quality Service in Normal or Best mode.
Image Quality Service plots allow checking the print quality that the printer can deliver for every color
of the printer separately: Cyan/Magenta/Yellow/Matte Black/Black/Gray.
Besides the Image Quality Service plots, also available is the Print Reference Plot in Fast/Normal/
Best. This plots allows checking print quality using jobs that contain user images that have been already
ripped.
Advance Diagnostic Print has the following Diagnostics available:
All the diagnostic Prints (except Force Drop Detection
) require that the printer be ready to print (paper
loaded, printhead and supplies installed). At the beginning of each diagnostic, you will see the following
screen:
ENWW Service Utilities 185
