Peaks will show up in a scan as a lighter color and not necessarily in all colors, it depends on which color
channels are being affected by the dirt/ scratch.
Drops will be seen as a dark line in the scan and again not necessarily in all colors, it depends on which color
channels are being affected by the dirt/ scratch.
If the peak or the drop is within 1-2 div (lines) it is usually not noticeable in the scan and is just general noise.
The dirt or the scratch can be from one pixel to several!
Statistics File
This file contains useful information about the usage of the system, along with firmware version and last
calibration date.

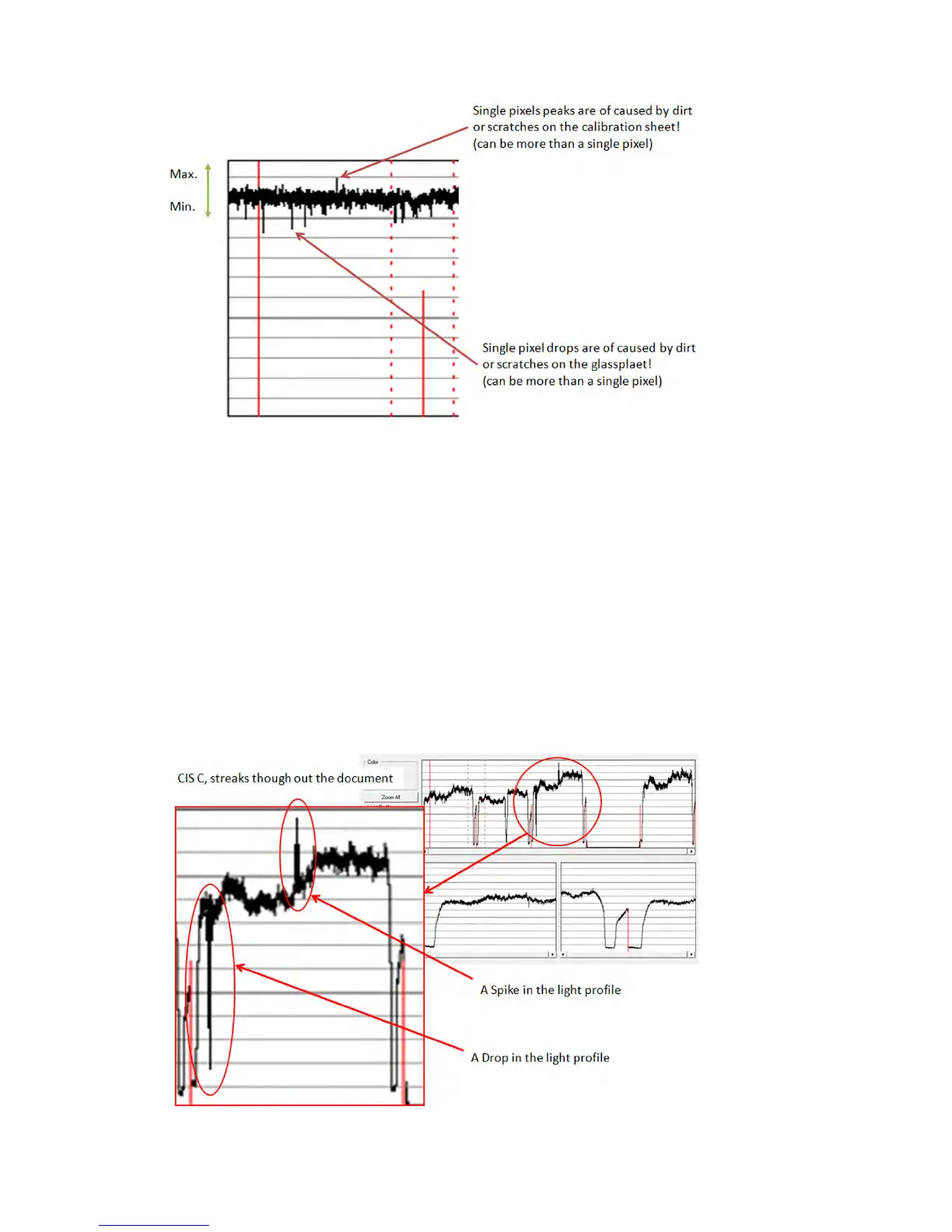

Troubleshooting image quality using the light profiles
A drop in the light profile is often caused by dirt/dust on the glass plate A spike is related to the calibration,
either dirt or dust on the glass plate during the calibration or a dirty calibration sheet.
ENWW Service Utilities 201
