HP DL580 - I;O expansion board components

Component identification 16

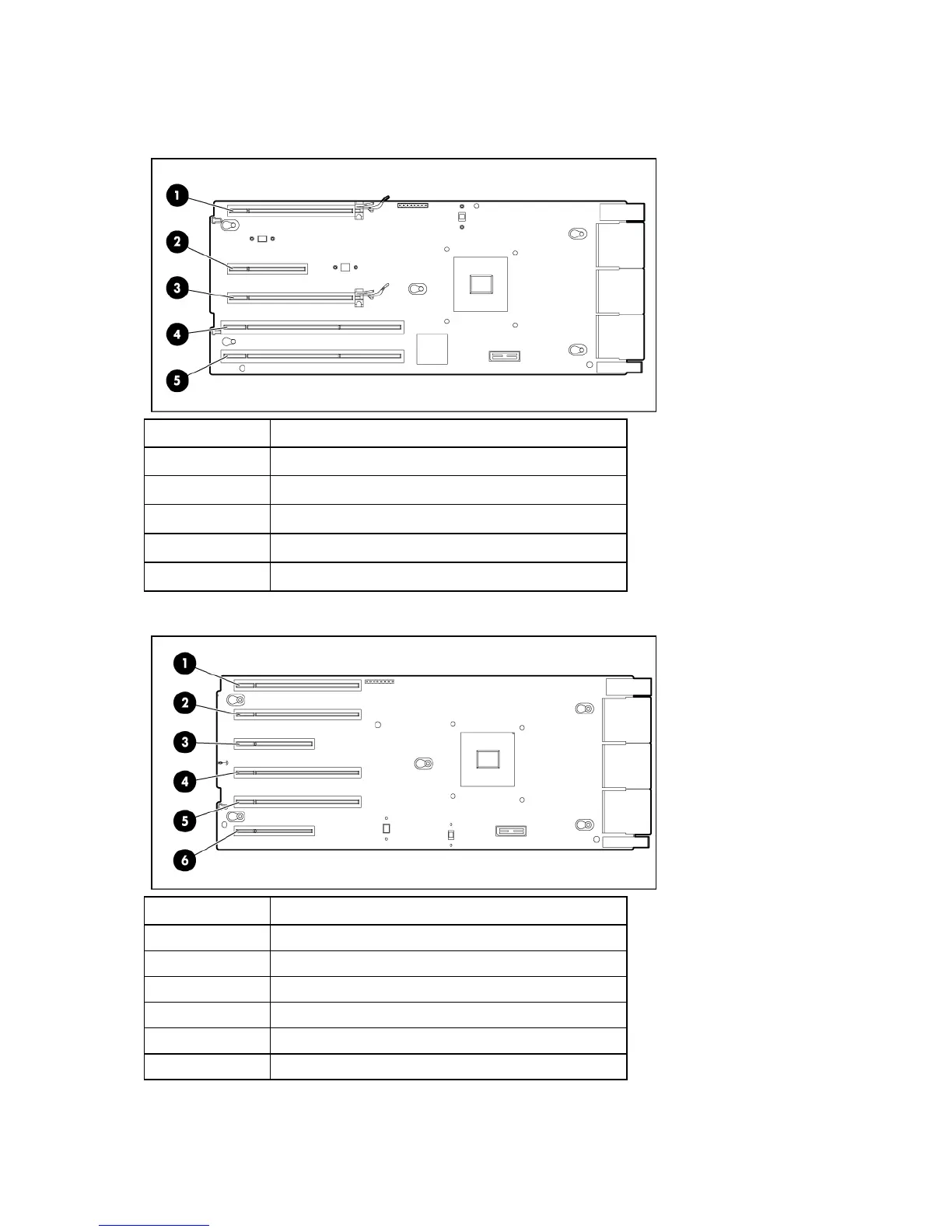

I/O expansion board components
• PCI-X/PCI Express I/O expansion board
Item Description
1 Slot 6 PCIe2 x16 (16, 8, 4, 2, 1)
2 Slot 4 PCIe2 x4 (4, 2, 1)
3 Slot 3 PCIe2 x16 (16, 8, 4, 2, 1)
4 Slot 2 PCI-X
5 Slot 1 PCI-X
• PCI Express I/O expansion board
Item Description
1 Slot 6 PCIe2 x8 (8, 4, 2, 1)
2 Slot 5 PCIe2 x8 (8, 4, 2, 1)
3 Slot 4 PCIe2 x4 (4, 2, 1)
4 Slot 3 PCIe2 x8 (8, 4, 2, 1)
5 Slot 2 PCIe2 x8 (8, 4, 2, 1)
6 Slot 1 PCIe1 x4 (4, 2, 1)
