Hardware options installation 54
3.
Connect the power cord to the power supply.
4. Connect the power cord to the power source.
5. Be sure that the power supply LED is green ("Power supply LED" on page 12).
6. Be sure that the front panel external health LED is green ("Front panel LEDs and buttons" on page 8).
Internal solid state drive expansion bay option
1. Power down the server (on page 25).
2. Extend the server from the rack (on page 25).
3. Remove the access panel (on page 26).

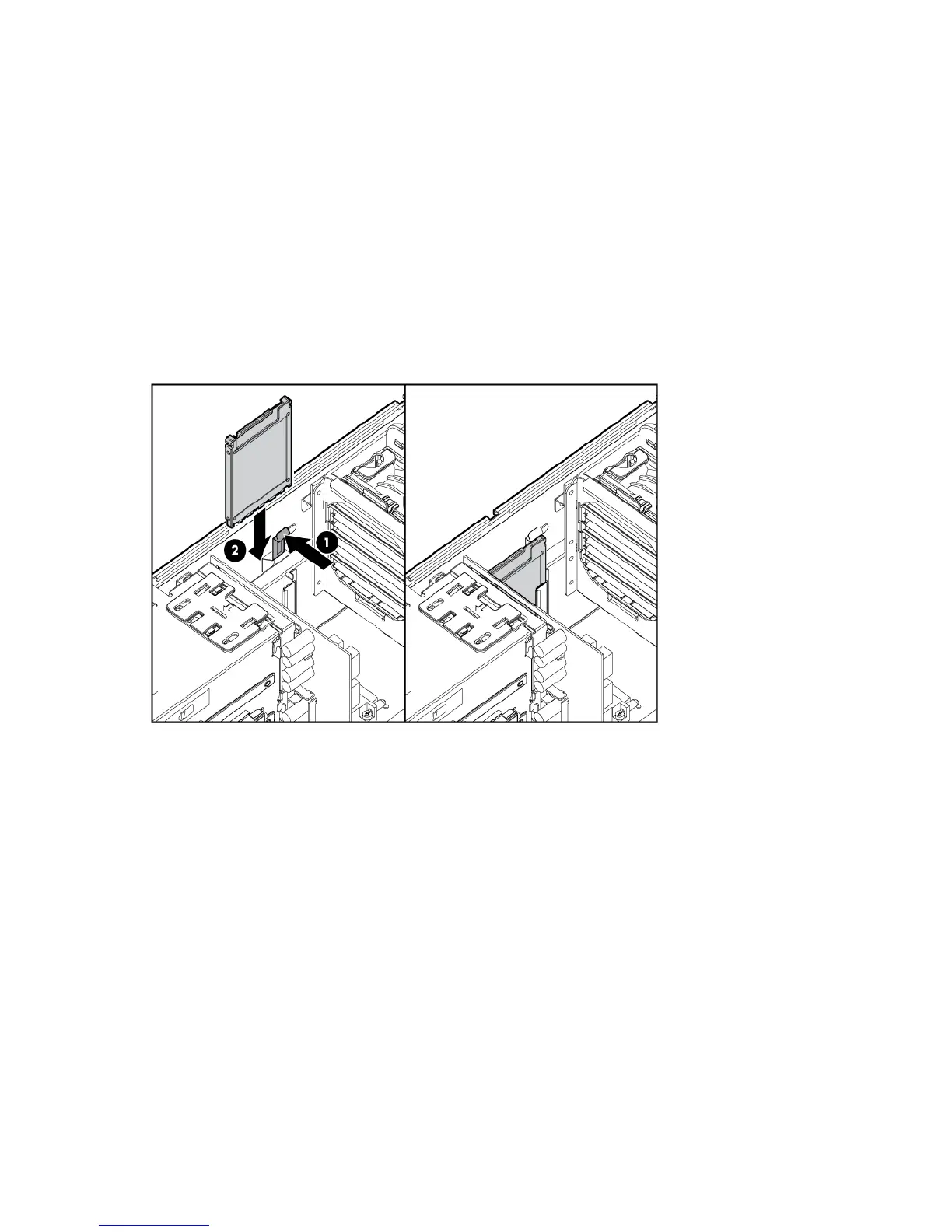

4. Install the solid state drive.
The SPI board is not shown for clarity.
5. Connect the cable.
The SPI board is not shown for clarity.
