Component identification 10

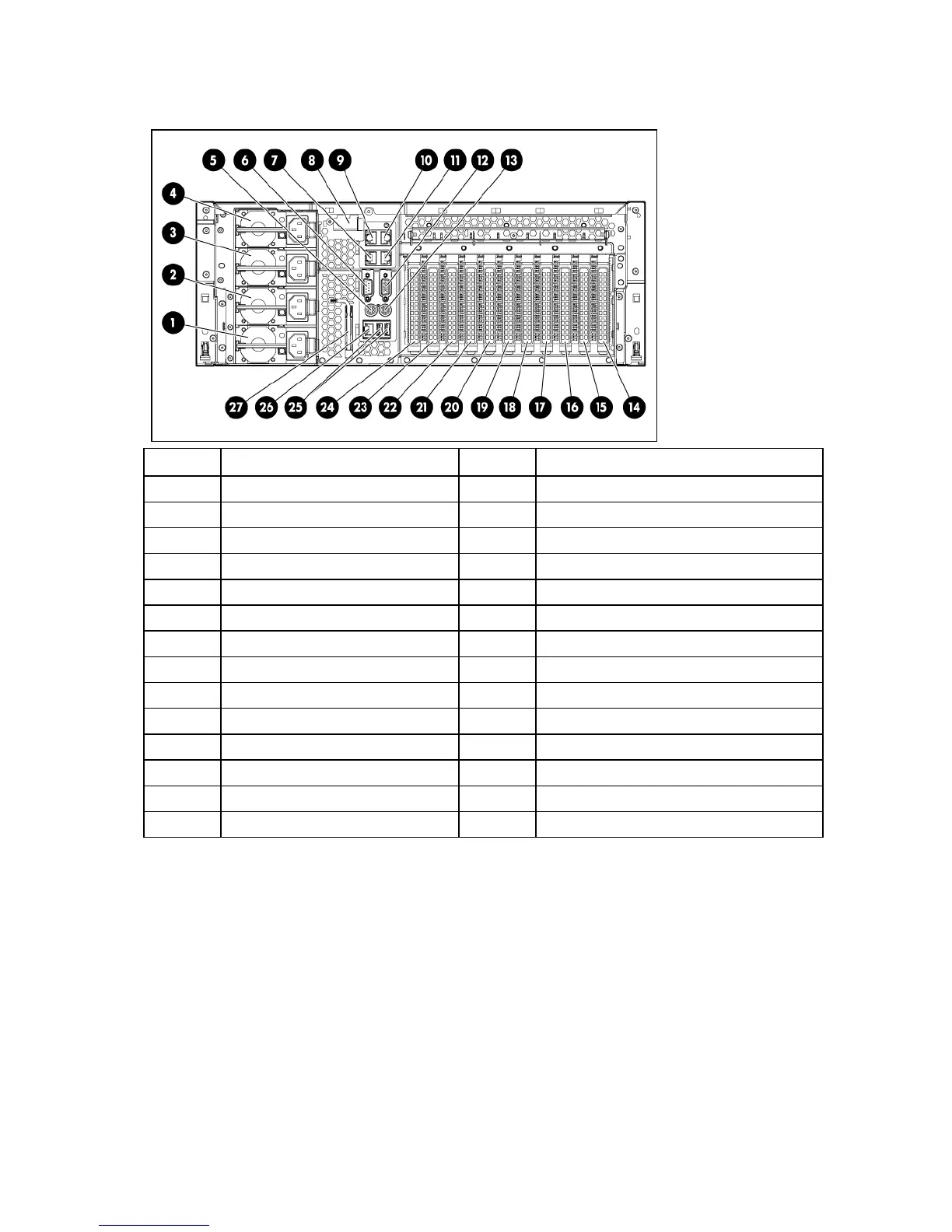

Rear panel components
Item Description Item Description
1 Power supply bay 4 (optional) 15 Expansion slot 2 (optional)
2 Power supply bay 3 (optional) 16 Expansion slot 3 (optional)
3 Power supply bay 2 17 Expansion slot 4 (optional)
4 Power supply bay 1 18 Expansion slot 5 (optional)
5 Mouse connector 19 Expansion slot 6 (optional)
6 Serial connector 20 PCIe2 x8 expansion slot 7
7 NIC 2 connector 21 PCIe2 x8 expansion slot 8
8 10Gb NIC adapter blank 22 PCIe2 x16 expansion slot 9
9 NIC 4 connector 23 PCIe2 x8 expansion slot 10
10 NIC 3 connector 24 PCIe2 x16 expansion slot 11
11 NIC 1 connector 25 USB connectors (2)
12 Video connector 26 iLO 3 connector
13 Keyboard connector 27 T-10/T-15 Torx screwdriver
14 Expansion slot 1 (optional) — —
For optional configuration of slots 1–6, see "I/O expansion board components (on page 16)."
