Operations 28
4.

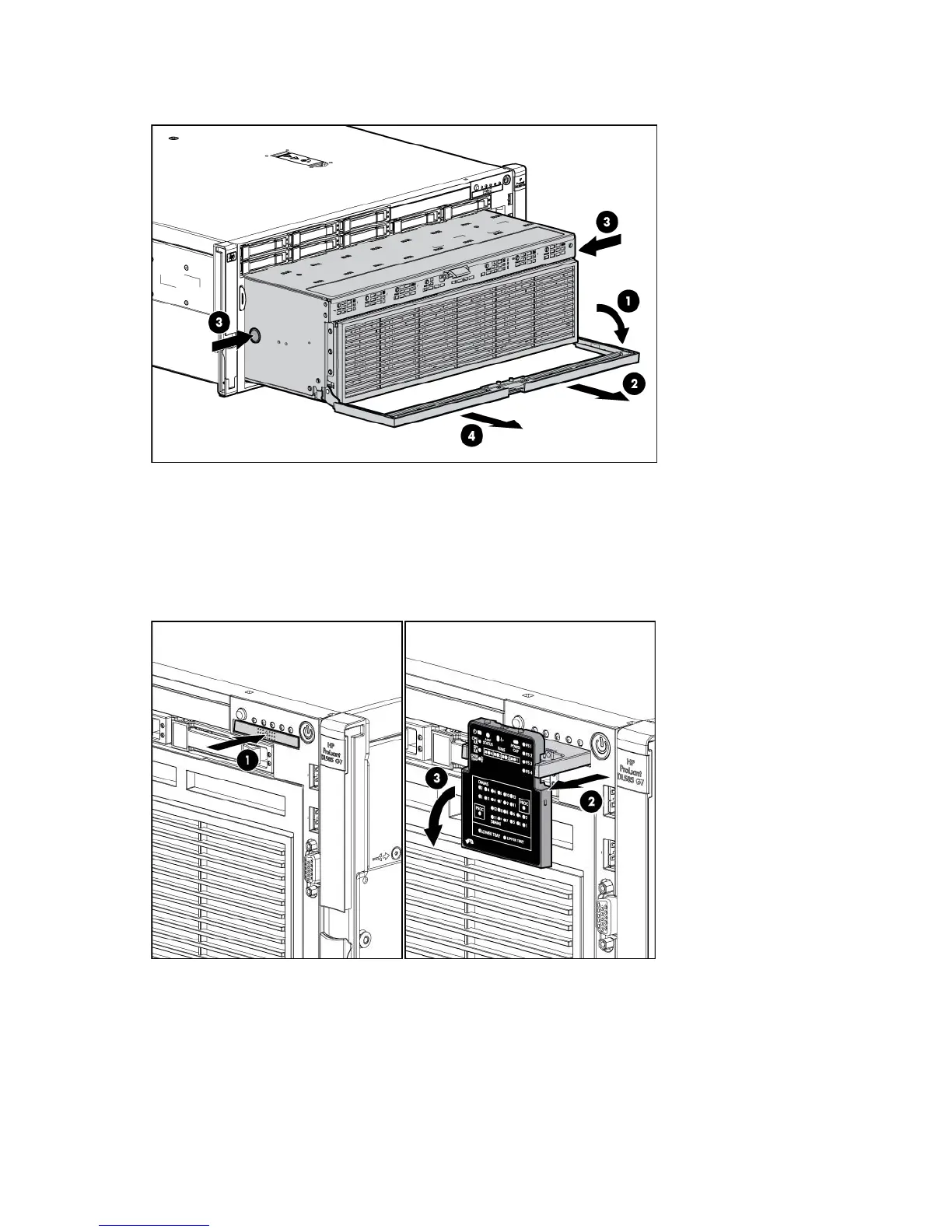

Firmly holding the processor memory drawer, press the release buttons and then remove the drawer
from the server.
Access the Systems Insight Display
To access the Systems Insight Display:
1. Press and release the panel.
2. After the display fully ejects, rotate the display downward to view the LEDs.
Remove the SPI board
To remove the component:
1. Power down the server (on page 25).
2. Extend the server from the rack (on page 25).
