Component identification 8

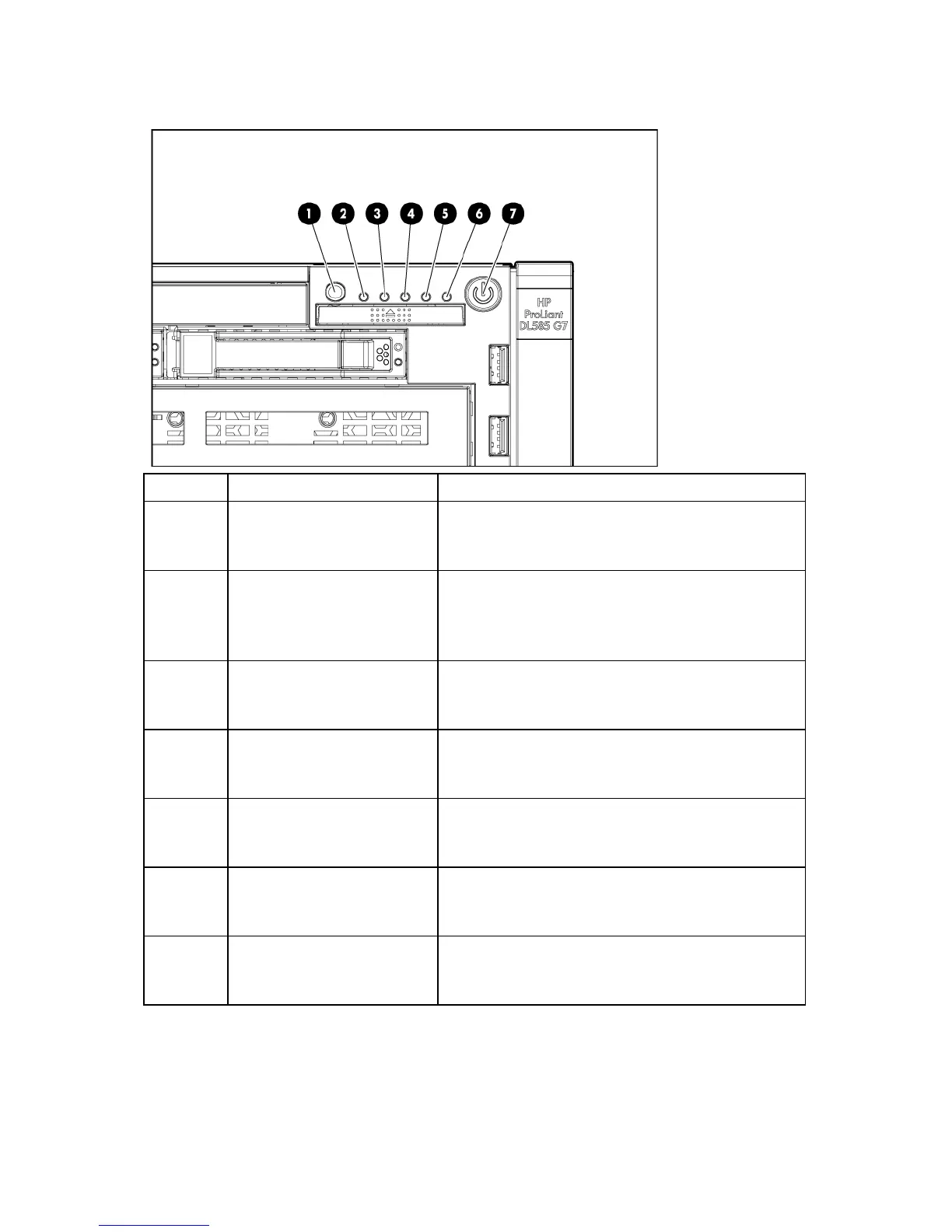

Front panel LEDs and buttons
Item Description Status
1 UID button and LED Blue—Activated
Blue (flashing)—Server being managed remotely
Off—Deactivated
2 Health LED Green—Normal (system on)
Amber (flashing)—Internal system health degraded
Red (flashing)—Internal system health critical
Off—Normal (system off)
3 NIC 1 LED Green—Linked to network
Green (flashing)—Linked with activity on the network
Off—No network connection
4 NIC 2 LED Green—Linked to network
Green (flashing)—Linked with activity on the network
Off—No network connection
5 NIC 3 LED Green—Linked to network
Green (flashing)—Linked with activity on the network
Off—No network connection
6 NIC 4 LED Green—Linked to network
Green (flashing)—Linked with activity on the network
Off—No network connection
7 Power on/Standby button and
LED
Amber—System has AC power and is in standby mode.
Green—System has AC power and is powered on.
Off—System has no AC power.
