HP dx2300 - Microtower PC User Manual

Removing a 5.25" Drive Bezel Blank
If the computer was not shipped with a drive in the 5.25" option bay, the bay will be covered by a bezel
blank. If you add a drive to the option bay, you must first remove the bezel blank.
1. Turn off the computer properly through the operating system, then turn off any external devices.
2. Disconnect the power cord from the power outlet and the computer, and disconnect any external
devices.
3. Remove the access panel and front bezel. Refer to
Removing the Computer Access Panel and
Front Bezel on page 3.
4. While facing the inside of the front bezel, press the two retaining tabs on the right towards the outer
edge of the bezel (1) and pull the bezel blank inwards to remove it (2).

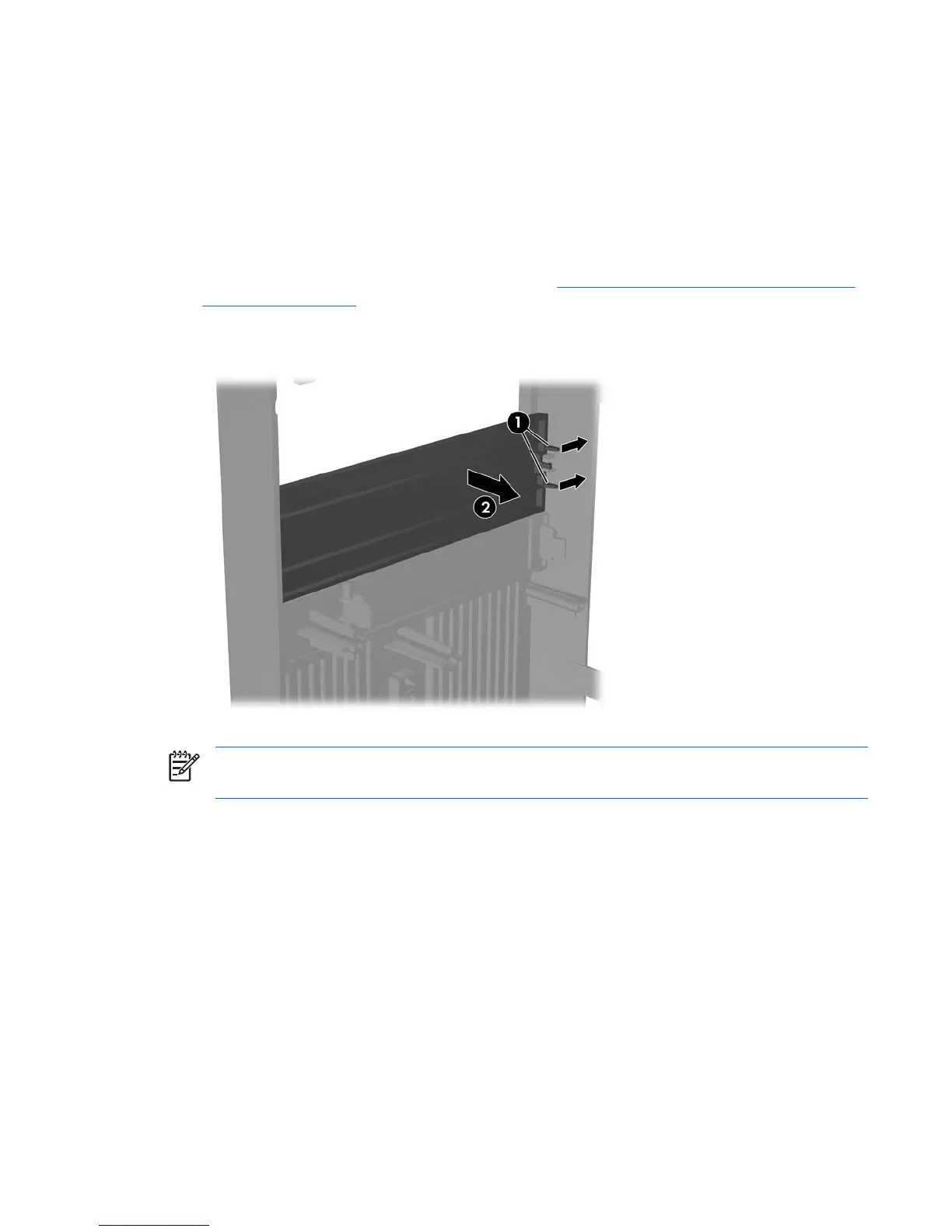

Figure 2-3 Removing a 5.25" Bezel Blank
NOTE: To install a 5.25" bezel blank, slide the left side of the blank into the two retainer slots
on the left side of the front bezel then snap the right side of the blank into place.
ENWW Removing a 5.25" Drive Bezel Blank 5

HP dx2300 - Microtower PC Specifications

General

Audio	Integrated High Definition audio
Form Factor	Microtower
Processor	Intel Celeron, Intel Pentium 4, Intel Core 2 Duo
Memory	Up to 4 GB DDR2
Optical Drive	DVD-ROM, DVD+/-RW
Graphics	Intel GMA 950 integrated graphics
Networking	10/100/1000 Ethernet
Expansion Slots	PCI, PCI Express x1, PCI Express x16
Ports	USB 2.0, serial, parallel, PS/2, audio in/out
Operating System	Windows Vista, Windows XP Professional
Chipset	Intel 945G
