HP dx2300 - Microtower PC User Manual

5. Remove the computer access panel.
6. Locate the battery and battery holder on the system board.
NOTE: On some computer models, it may be necessary to remove an internal component
to gain access to the battery.
7. Depending on the type of battery holder on the system board, complete the following instructions
to replace the battery.
Type 1
a. Lift the battery out of its holder.

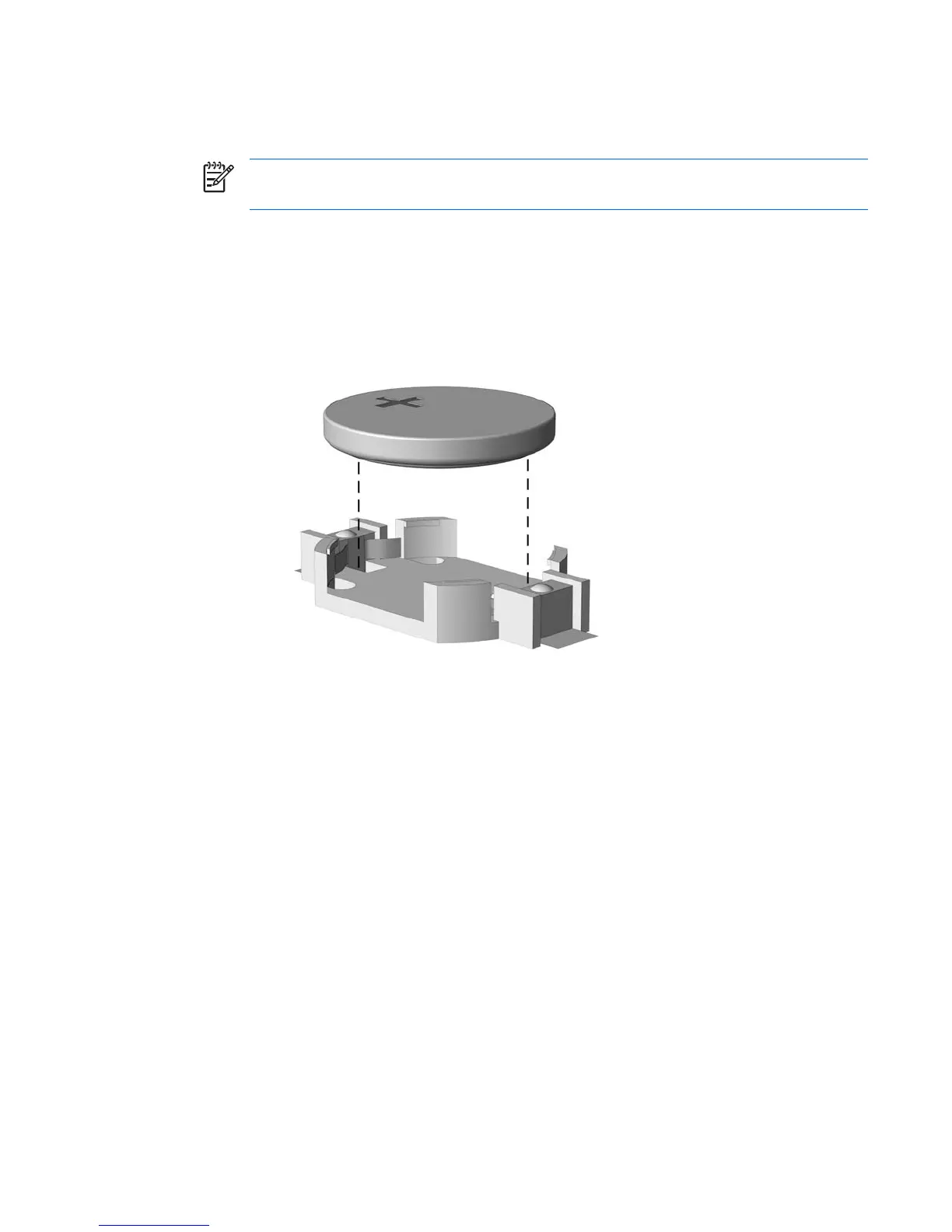

Figure 3-1 Removing a Coin Cell Battery (Type 1)
b. Slide the replacement battery into position, positive side up. The battery holder automatically
secures the battery in the proper position.
Type 2
a. To release the battery from its holder, squeeze the metal clamp that extends above one edge
of the battery. When the battery pops up, lift it out (1).
ENWW 19

HP dx2300 - Microtower PC Specifications

General

Audio	Integrated High Definition audio
Form Factor	Microtower
Processor	Intel Celeron, Intel Pentium 4, Intel Core 2 Duo
Memory	Up to 4 GB DDR2
Optical Drive	DVD-ROM, DVD+/-RW
Graphics	Intel GMA 950 integrated graphics
Networking	10/100/1000 Ethernet
Expansion Slots	PCI, PCI Express x1, PCI Express x16
Ports	USB 2.0, serial, parallel, PS/2, audio in/out
Operating System	Windows Vista, Windows XP Professional
Chipset	Intel 945G
