EL-MF877-00 Page 6
Template Revision B
PSG instructions for this template are available at EL-MF877-01

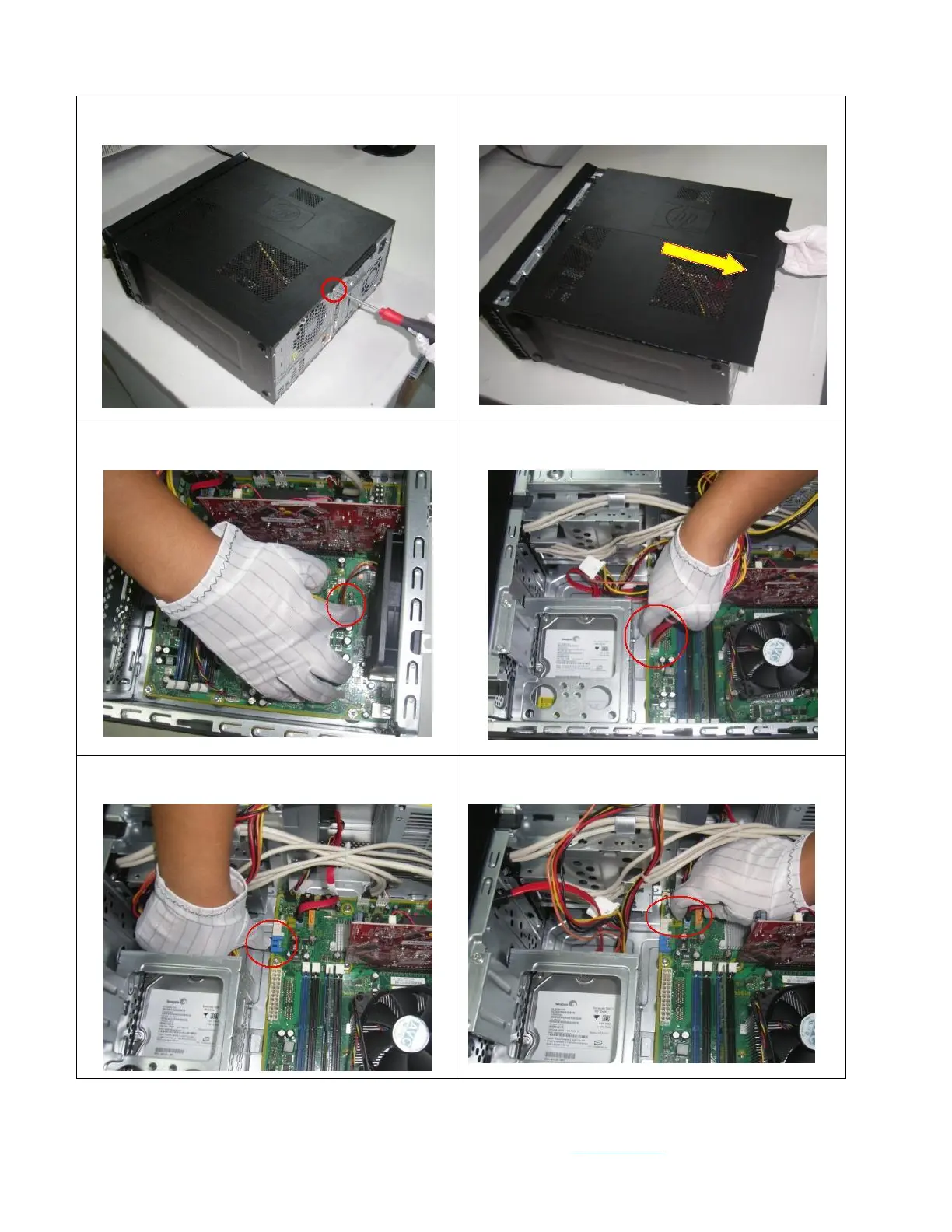

Figure 1 Remove the screw on the cover
Figure 2 pull out the blade card
Figure 3 Disconnect the cables from the board
Figure 4 Disconnect the cables from the board
Figure 5 Disconnect the cables from the board
Figure 6 Disconnect the cables from the board
