HP Elite 7000 - Page 7

EL-MF877-00 Page 7
Template Revision B
PSG instructions for this template are available at EL-MF877-01

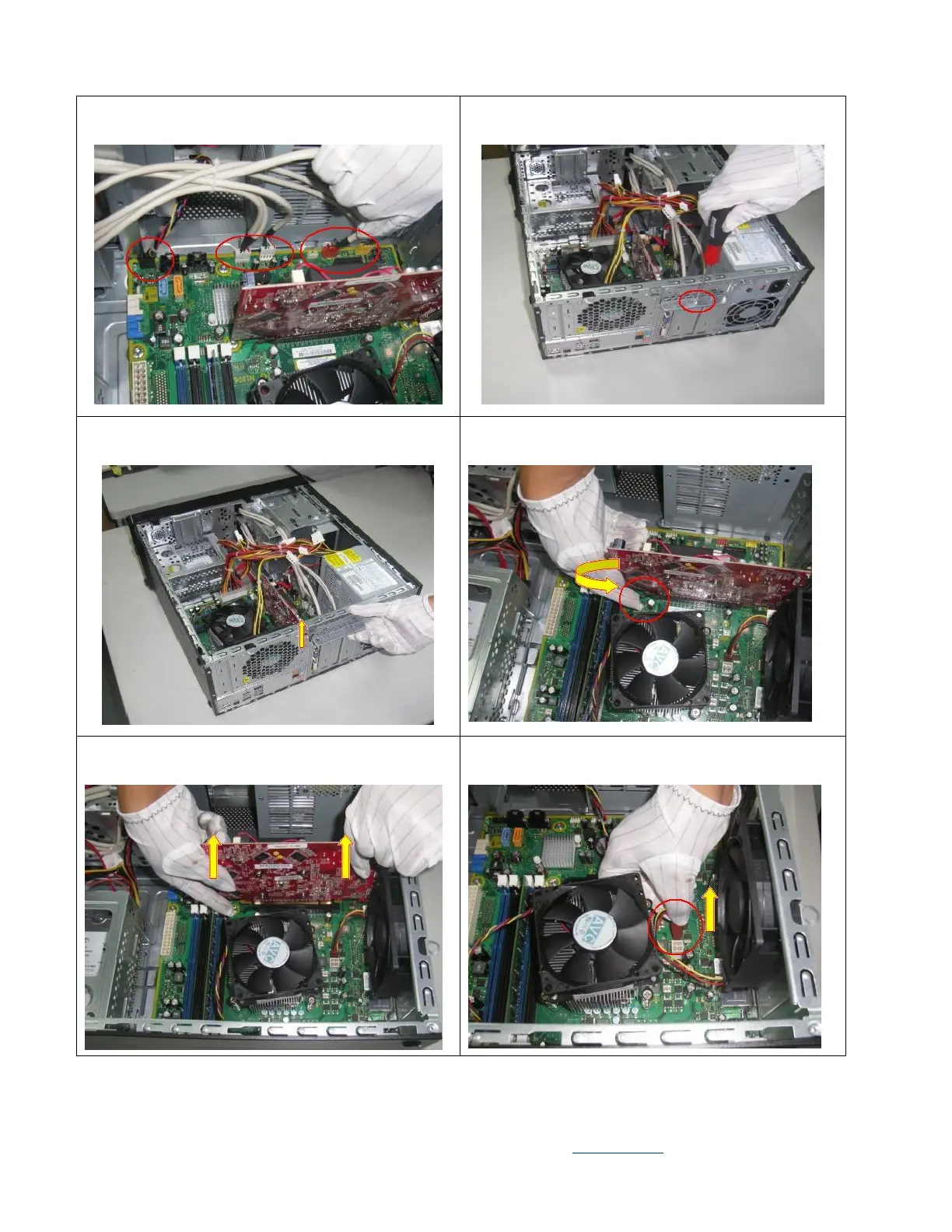

Figure 7 Disconnect the cables from the board
Figure 8 Loose the screw of PCI shielding
Figure 9 Remove the PCI shield
Figure 10 Push the switch of PCI_E slot
Figure 11 Remove the Graphic card from the board
Figure12 Disconnect the system fan from the board
