4. Turn the computer right-side up, with the front toward you.
5. Open the display as far as it will open.

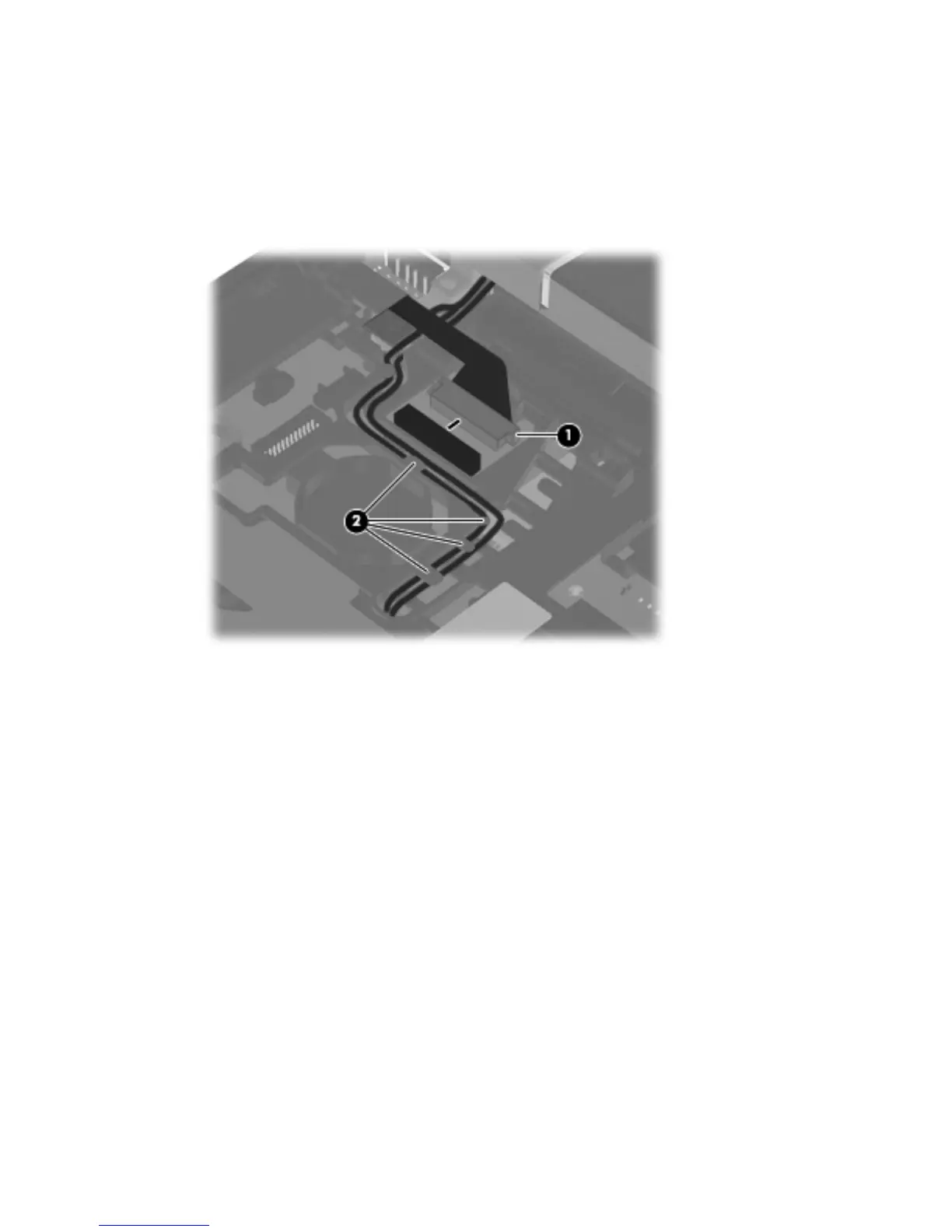

6. Disconnect the display panel cable (1) from the system board and release it from the clip built
into the top cover.
7. Release the wireless antenna cables from the clips (2) built into the top cover.
8. Disconnect the microphone cable (1) from the system board.
ENWW Component replacement procedures 77
