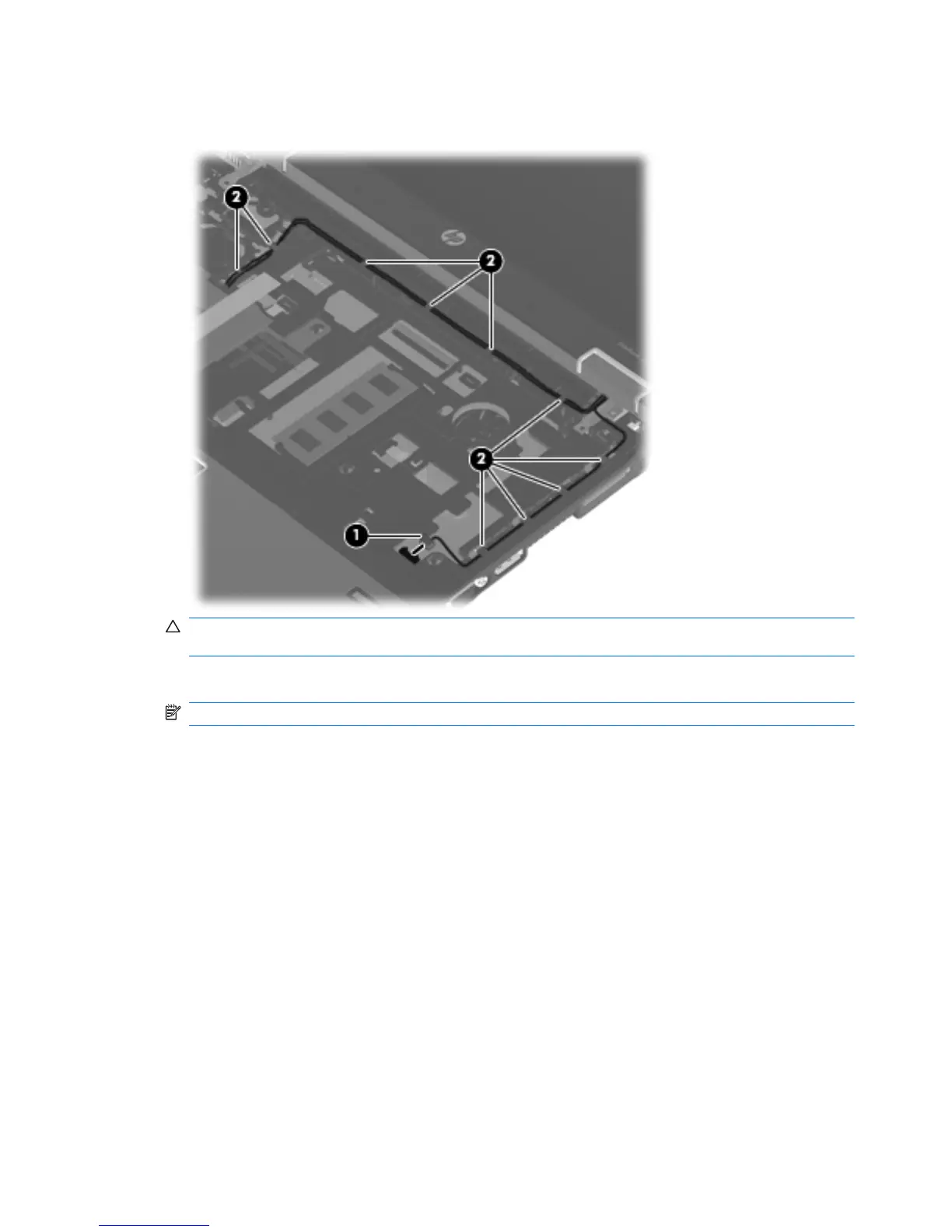

9. Release the microphone cable and the wireless antenna cables from the clips (2) built into the
top cover.
CAUTION: The display assembly will be unsupported when the following screws are removed.
To prevent damage to the display assembly, support it before removing the screws.
10. Remove the two Torx T8M2.5×6.0 screws (1) that secure the display assembly to the computer.
NOTE: The screw on the left display hinge also secures a display panel cable ground loop (2).
78 Chapter 4 Removal and replacement procedures ENWW
