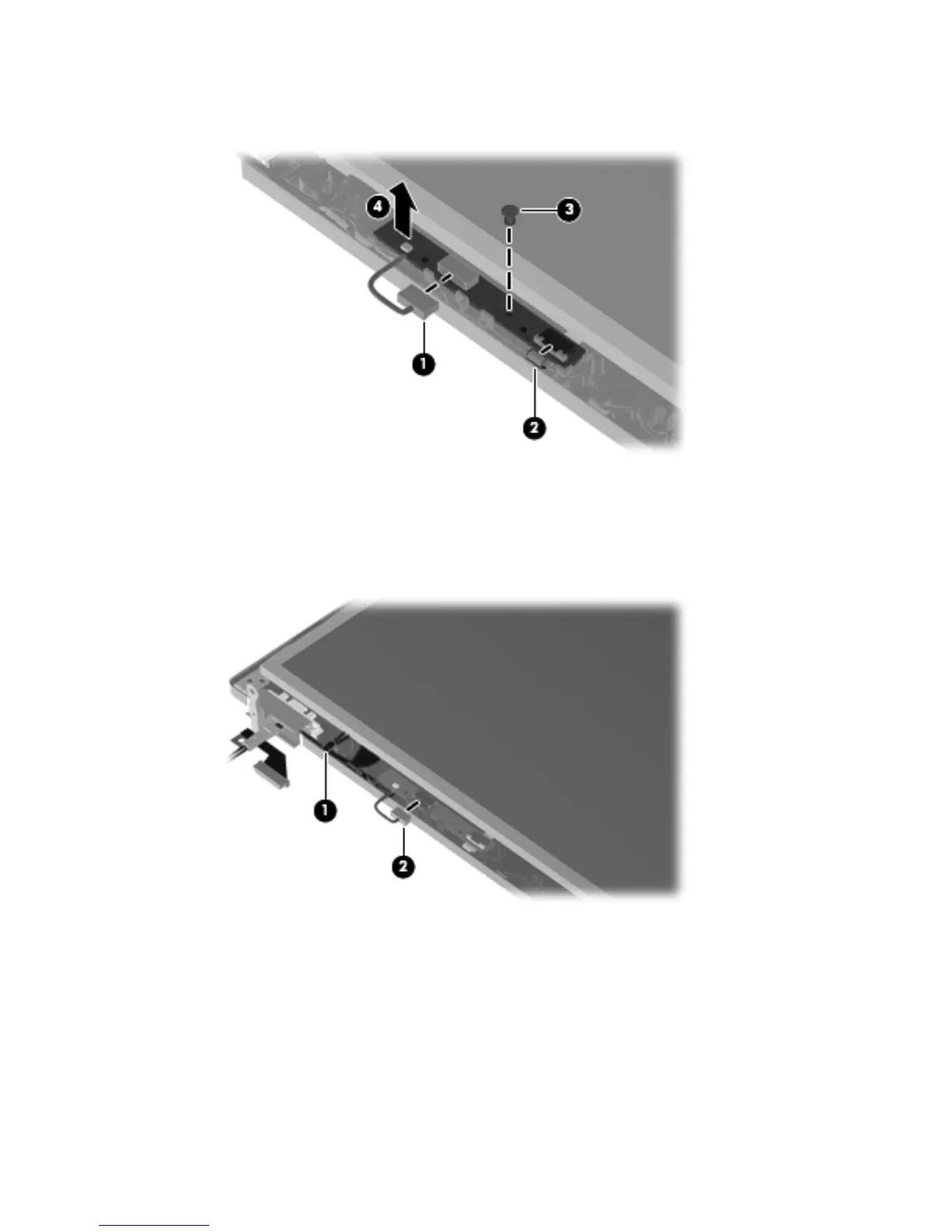

c. Remove the ambient light sensor board (3). The ambient light sensor board is available
using spare part number 598761-001.
14. If it is necessary to replace the webcam module, display hinges, display panel cable, or display
enclosure:
a. Release the display panel cable (1) from the clips built into the display enclosure.
b. Disconnect the display panel cable (2) from the ambient light sensor board.
c. Remove the two Torx T8M2.5×6.0 screws (1) that secure the display panel and hinges to
the display enclosure.
d. Lift the bottom edge of the display panel (2) until it rests at an angle.
82 Chapter 4 Removal and replacement procedures ENWW
