Remove the card reader board and bracket:

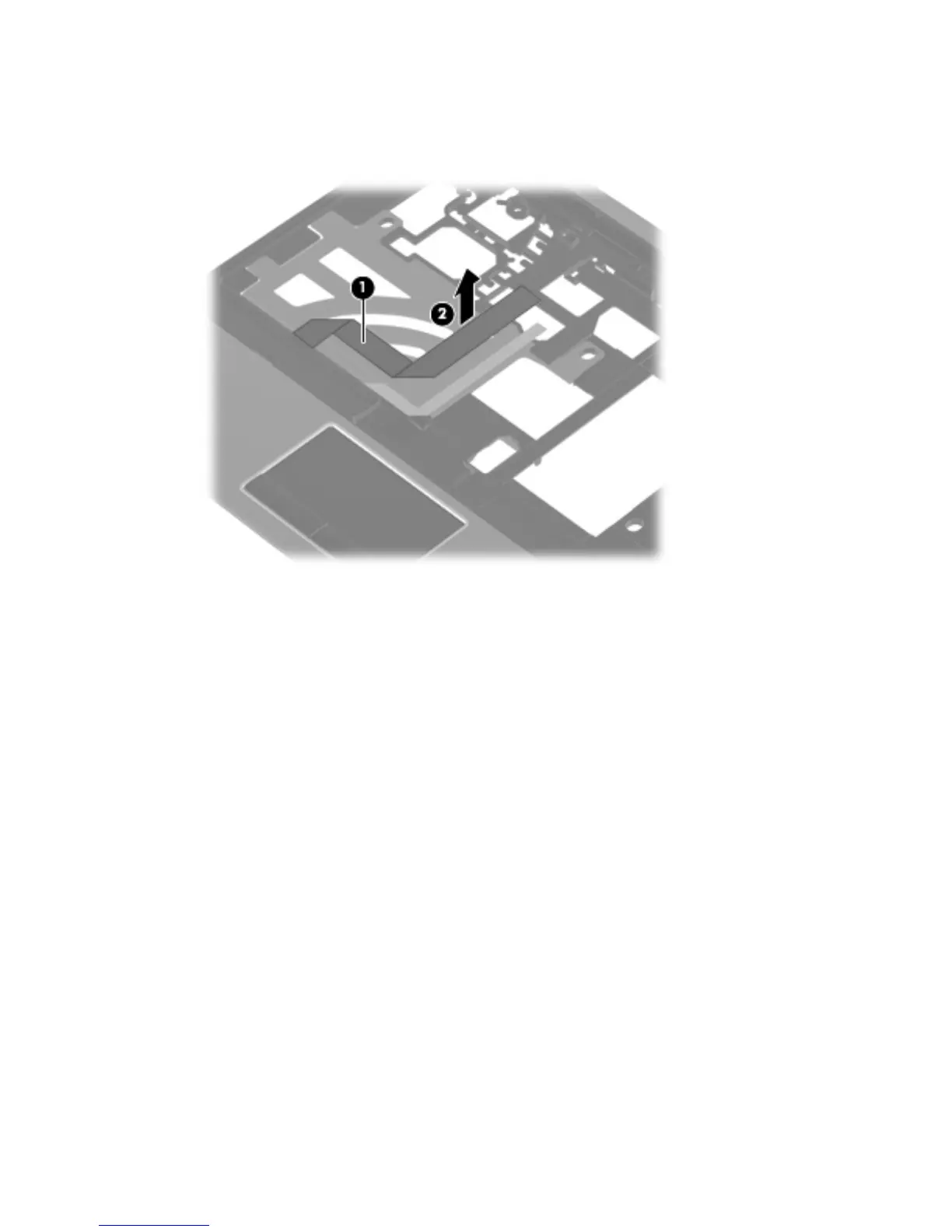

1. Detach the card reader board cable (1) from the surface of the top cover (2). (The card reader
board cable is attached to the top cover by double-sided tape.)
2. Turn the top cover upside down, with the front toward you.
3. Remove the two Phillips PM2.0×2.0 broad head screws (1) and the Phillips PM2.0×5.0 screw (2)
that secure the card reader board bracket to the top cover.
4. Lift the front edge of the card reader board bracket (3) until it rests at an angle.
ENWW Component replacement procedures 89
