HP EliteBook 2540P

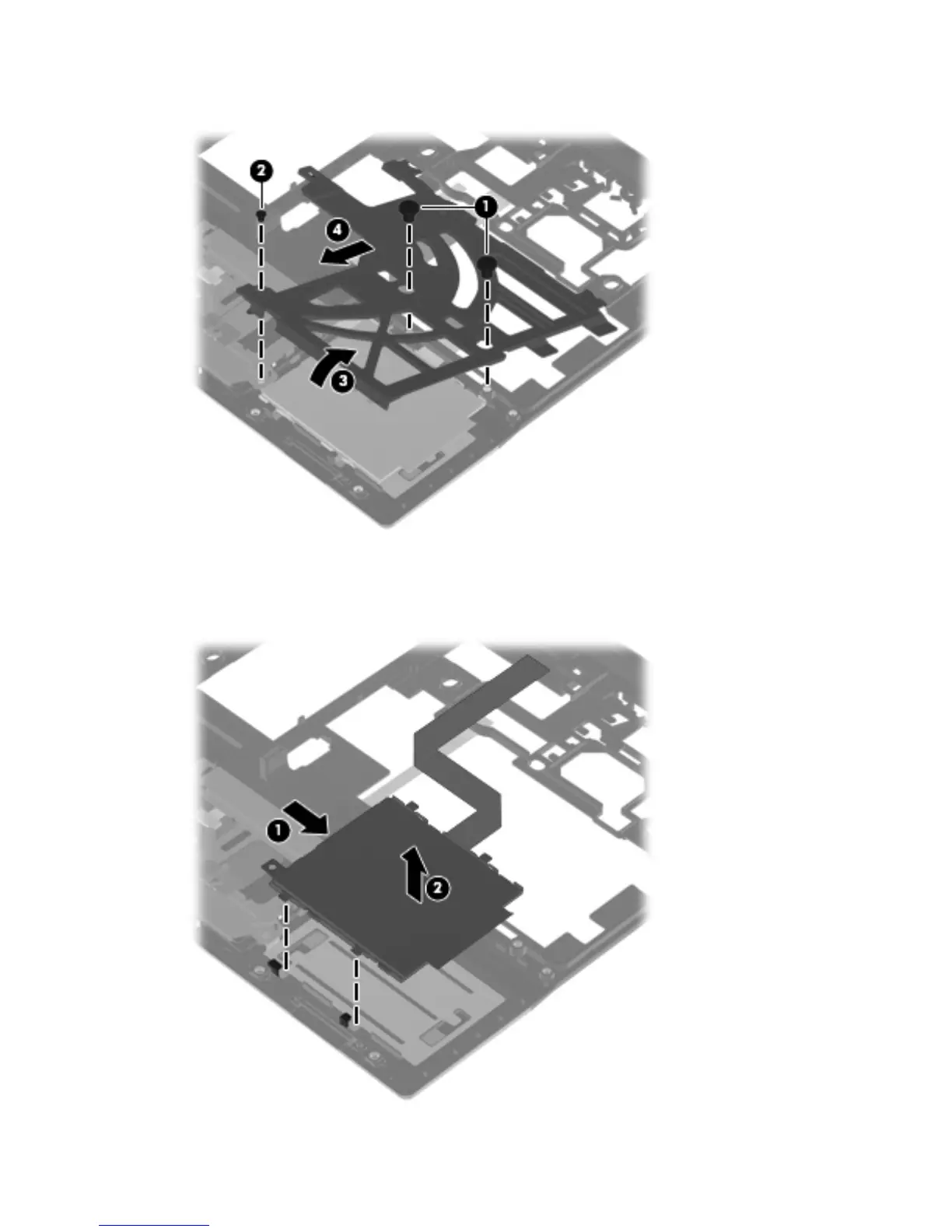

5. Remove the card reader board bracket (4) by sliding it up and forward at an angle.
6. Slide the card reader board (1) to the right until the tabs on the card reader board disengage
from the slots on the top cover.
7. Remove the card reader board (2) and cable.
90 Chapter 4 Removal and replacement procedures ENWW
