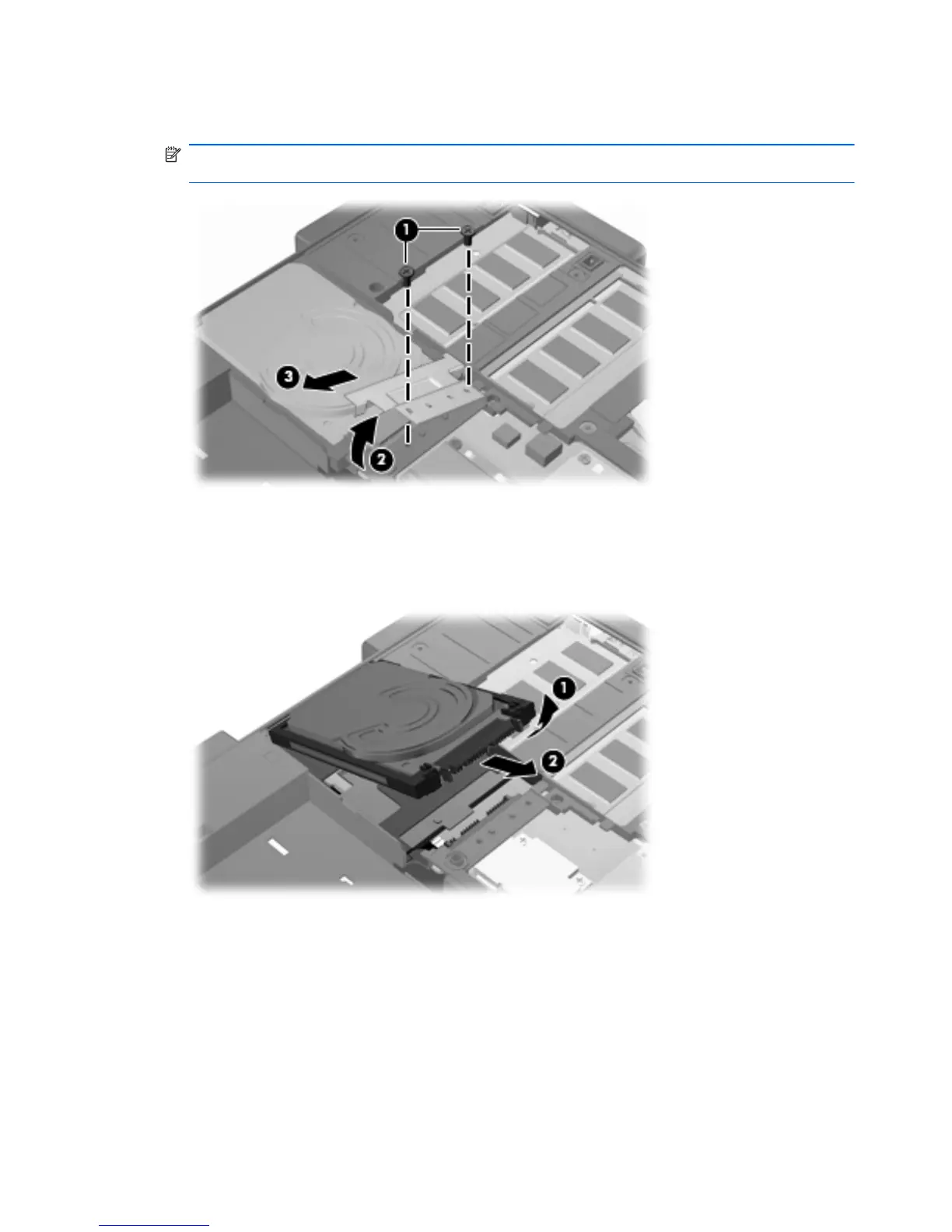

5. Lift the left side of the bracket up at an angle (2), and then remove the bracket from the
computer (3).
NOTE: The right side of the bracket has a tab that fits into a slot in the computer. When
reinstalling, make sure to insert the tab into the slot or the bracket will not seat correctly.
6. At the corner of the hard drive, pull the drive up (1) until it rests at an angle.
7. Pull the hard drive away from the bay and out of the computer (2).
Reverse this procedure to reassemble and install the hard drive.
