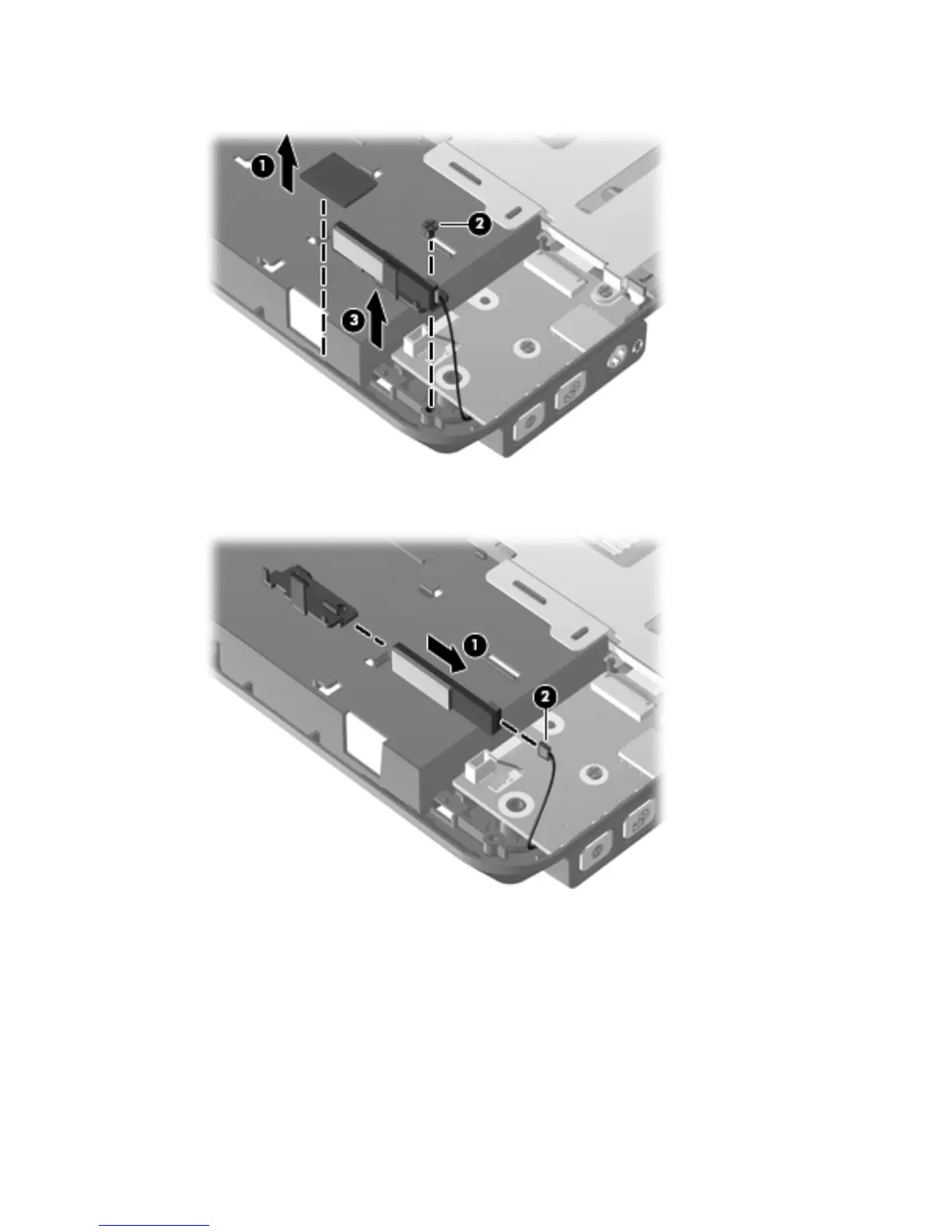

4. Lift the Bluetooth module holder (3) as far as the cable will allow.
5. Slide the Bluetooth module from the holder (1), and then disconnect the Bluetooth module cable
from the Bluetooth module (2).
6. Remove the Bluetooth module and holder from the computer.
Reverse this procedure to reassemble and install the Bluetooth module and holder.
ENWW Component replacement procedures 57
