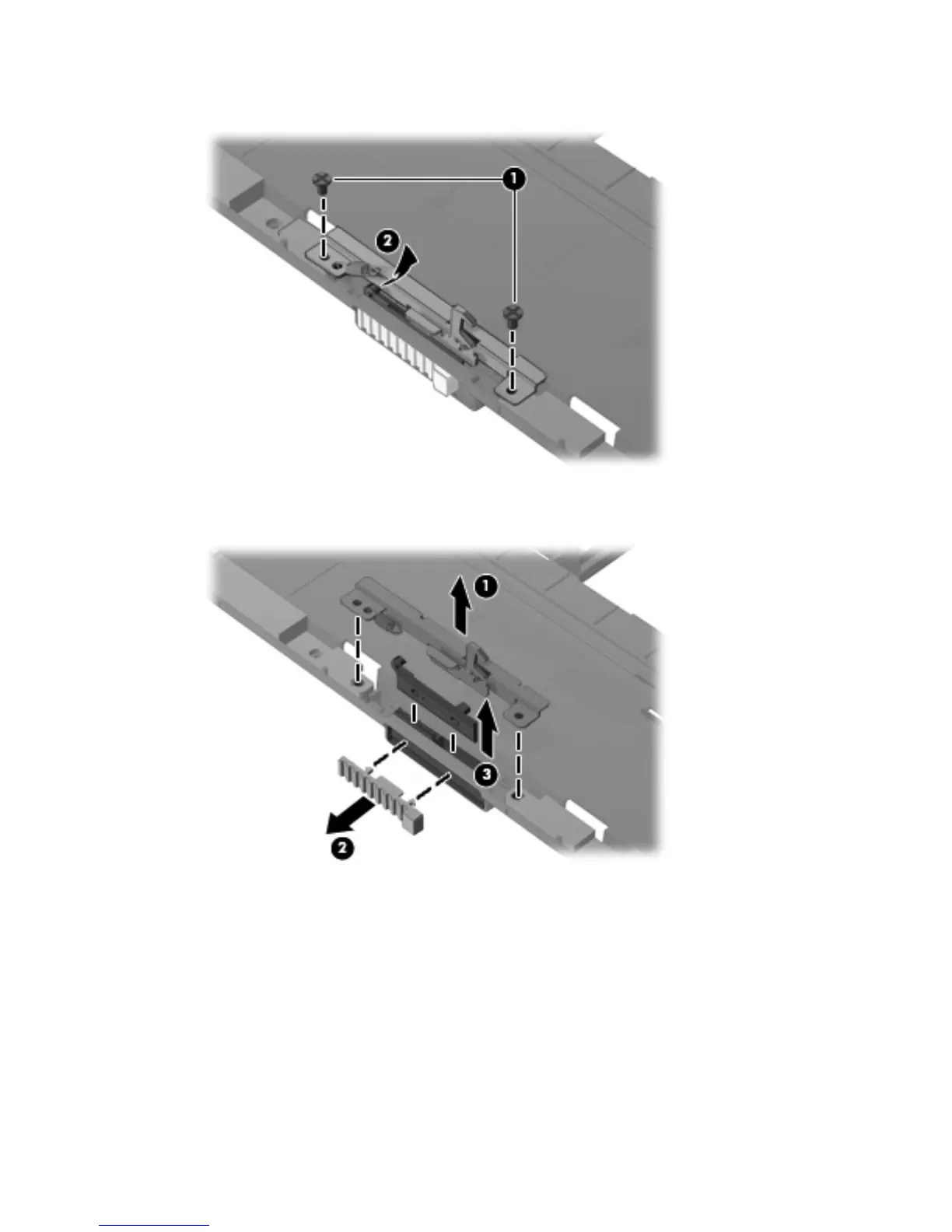

3. Detach the spring from the latch (2).
4. Lift the bracket from the computer (1), pull the front latch away from the front of the computer (2),
and then lift the inner latch piece from the computer (3).
Reverse this procedure to install the latch assembly.
ENWW Component replacement procedures 59
