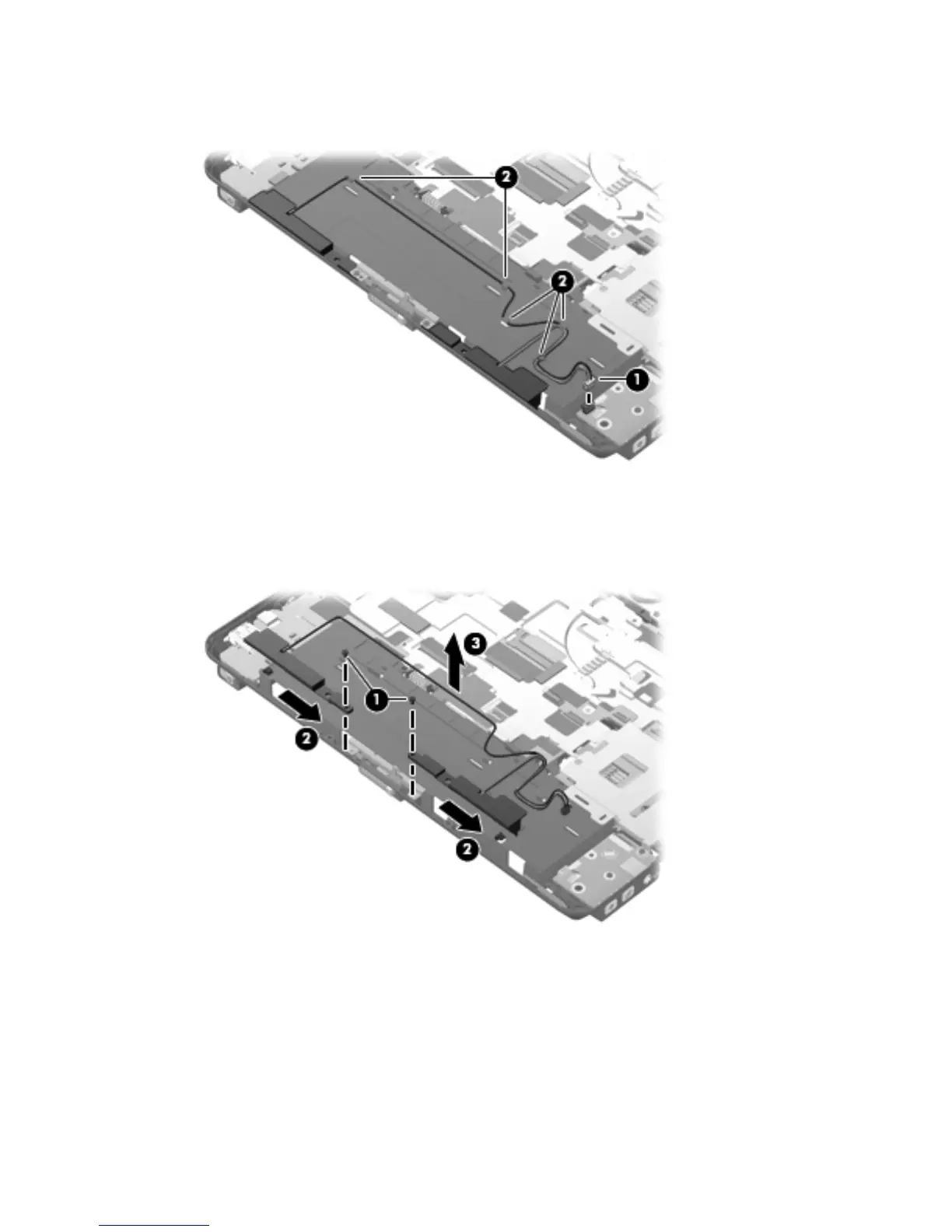

2. Unplug the speaker cable (1) from the audio connector board, and note the routing channel (2)
of the speaker cable on the enclosure base.
3. Remove the two Phillips PM2.0×4.0 screws (1) that secure the speaker assembly to the base
enclosure.
4. Slide the speakers toward the right (2), and then lift the speakers and cables from the base
enclosure (3).
Reverse this procedure to install the speaker assembly.
ENWW Component replacement procedures 61
