Perform the following steps:

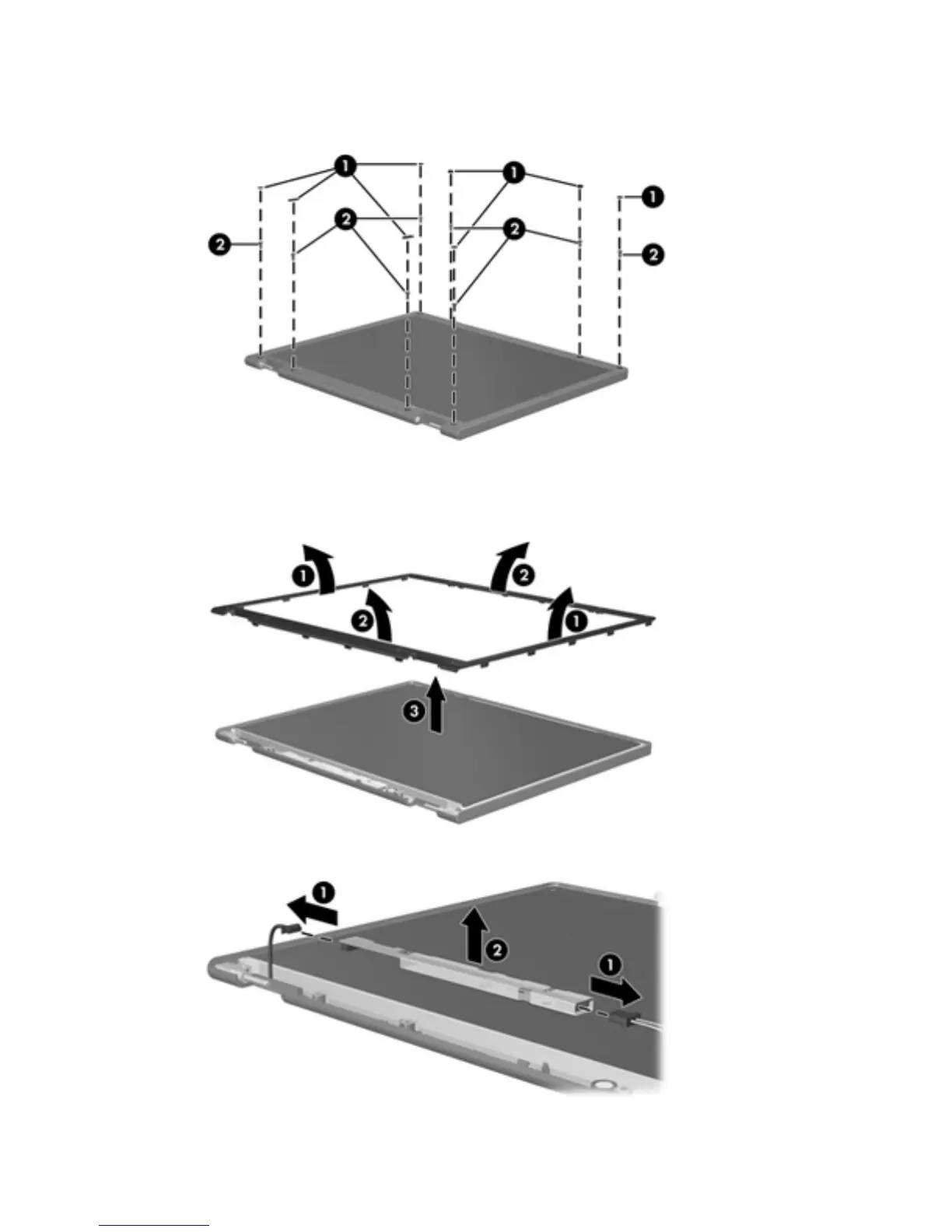

1. Remove the (1) and screws (2) that secure the display bezel to the display assembly.
2. Lift up and out on the left and right inside edges (1) and the top and bottom inside edges (2) of
the display bezel until the bezel disengages from the display assembly.
3. Remove the display bezel 3.
4. Disconnect all display panel cables (1) from the display inverter and remove the inverter 2.
Display 99
