HP EliteBook 2760p User Manual

Display assembly
The display assemblies include two WLAN antenna transceivers and cables and two WWAN antenna
transceivers and cables.
Description Spare part number
30.7 cm (12.1 in) WXGA, LED, AntiGlare touch screen display assembly 649753-001
30.7 cm (12.1 in) WXGA, LED, AntiGlare touch screen display assembly for use outdoors 649754-001
Before removing the display assembly, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet,
and then unplugging the AC adapter from the computer.
4. Remove the following components:
a. Remove the battery (see
Battery on page 41)
b. Remove the service access cover (see
Service access cover on page 42)
c. Remove the WLAN module (see
WLAN module on page 48)
d. Remove the WWAN module (see
WWAN module on page 51)
e. Remove the keyboard (see
Keyboard on page 53)
f. Remove the top cover (see
Top cover on page 57)

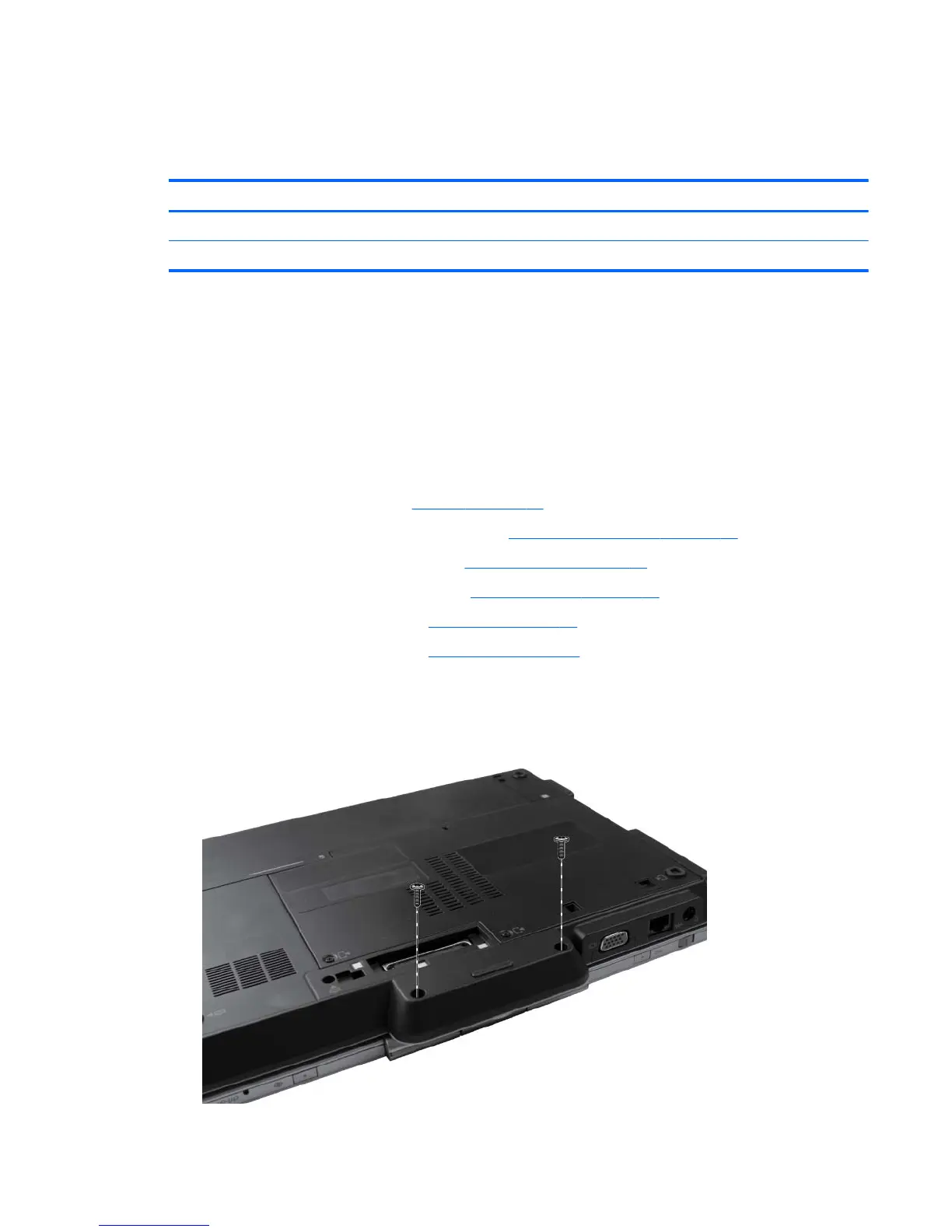

Remove the display assembly:
1. Position the computer upside down, with the rear toward you.
2. Remove the two Torx 9 M2.0×5.0 screws that secure the hinge cover to the computer.
Component replacement procedures 63

HP EliteBook 2760p Specifications

General

HDD capacity	- GB
SSD capacity	The Solid State Drive's storage capacity in Gigabytes.
Storage media	SSD
Optical drive type	No
Card reader integrated	Yes
Total storage capacity	128 GB
Compatible memory cards	MMC, SD
Memory slots	2x SO-DIMM
Internal memory	4 GB
Memory clock speed	1333 MHz
Maximum internal memory	16 GB
Operating system installed	Windows 7 Professional
Operating system architecture	64-bit
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	10 - 90 %
Graphics card	HD Graphics 3000
Graphics card family	Intel
Intel segment tagging	Enterprise
Minimum storage drive space	250 GB
Display diagonal	12.1 \
Display resolution	1280 x 800 pixels
Native aspect ratio	16:10
Bus type	DMI
Stepping	J1
Tjunction	100 C °C
Processor cache	3 MB
Processor cores	2
System bus rate	5 GT/s
Processor family	Intel® Core™ i5
Processor series	Intel Core i5-2500 Mobile Series
Processor socket	BGA 1023
Processor threads	4
Processor codename	Sandy Bridge
Processor frequency	2.6 GHz
Processor cache type	Smart Cache
Processor lithography	32 nm
Processor front side bus	- MHz
PCI Express slots version	2.0
Processor boost frequency	3.3 GHz
PCI Express configurations	1x16, 2x8, 1x8+2x4
Thermal Design Power (TDP)	35 W
CPU multiplier (bus/core ratio)	26
Maximum number of PCI Express lanes	16
Audio system	SRS Premium Sound
Wi-Fi standards	802.11a, 802.11b, 802.11g
Bluetooth version	2.1+EDR
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Mobile network generation	3G
Charging port type	DC-in jack
HDMI ports quantity	-
USB 2.0 ports quantity	3
Firewire (IEEE 1394) ports	1
Battery life (max)	5.5 h
Number of battery cells	6
Cable lock slot type	Kensington
Keyboard layout	QWERTY
Pointing device	Touchpad
Form factor	Convertible (Swivel)
Product type	Hybrid (2-in-1)
Country of origin	China
Processor code	SR046
Processor ARK ID	50072
Processor package size	37.5 x 37.5 (rPGA988B); 31 x 24 (BGA1023) mm
Supported instruction sets	AVX
Intel Identity Protection Technology version	1.00
On-board graphics card ID	0x116
On-board graphics card model	Intel® HD Graphics 3000
On-board graphics card family	Intel® HD Graphics
On-board graphics card base frequency	650 MHz
On-board graphics card dynamic frequency (max)	1300 MHz

Weight and Dimensions

Depth	212 mm
Width	290 mm
Height	32.3 mm
Weight	1800 g
