3. Position the computer right-side up, with the rear toward you.

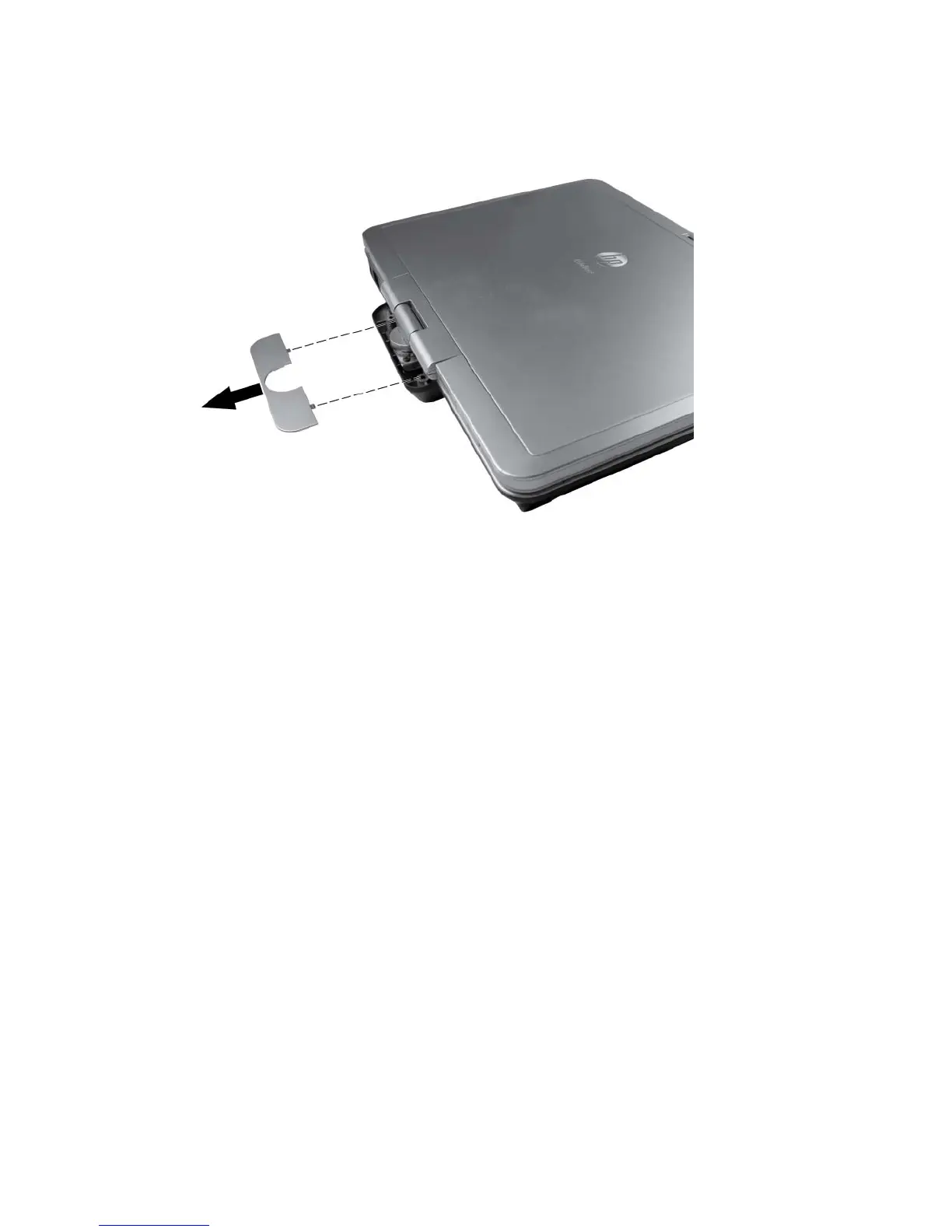

4. Slide the hinge cover away from the computer. The hinge cover is available in the Plastics Kit,
spare part number 649764-001.
5. Position the computer right-side up, with the front toward you and open the display so it stands
straight up.
6. Feed the WWAN and WLAN antennas (1) through the bottom of the base enclosure and remove
the antennas.
7. Disconnect the webcam cable (2) from the system board.
64 Chapter 4 Removal and replacement procedures
