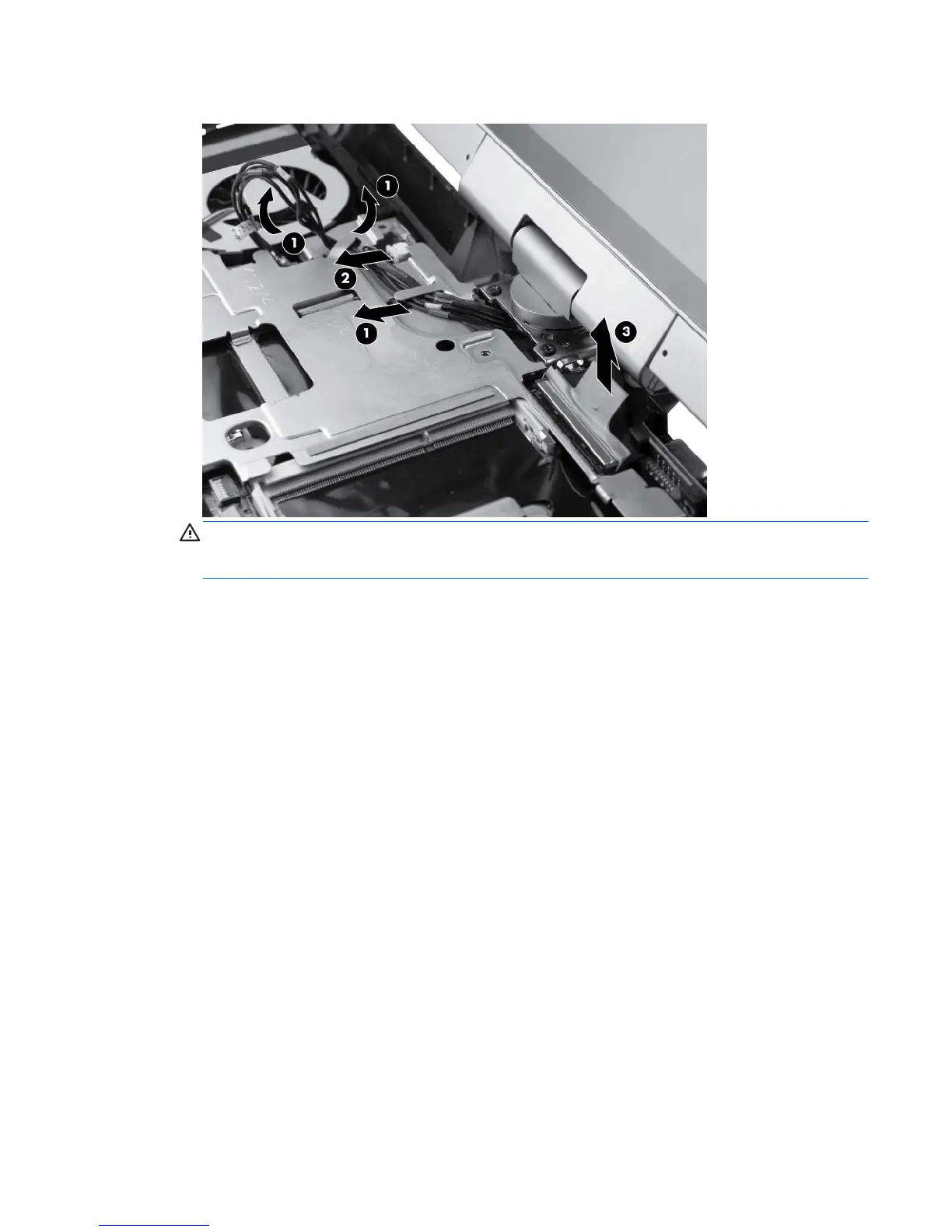

8. Disconnect the display cable (3) from the system board.
CAUTION: Support the display assembly when removing the display screws in the following
step. Failure to support the display assembly can result in damage to the assembly and other
components.
9. Remove the two Phillips M2.5x6.0 screws (1) that secure the display assembly to the base
enclosure.
10. Gently rotate the display (2) and swivel it at a 90-degree angle to gain access to the remaining
screws in the display bracket.
11. Remove the two Phillips M2.5 x 6.0 screws (3) that secure the display bracket to the base
enclosure.
Component replacement procedures 65
