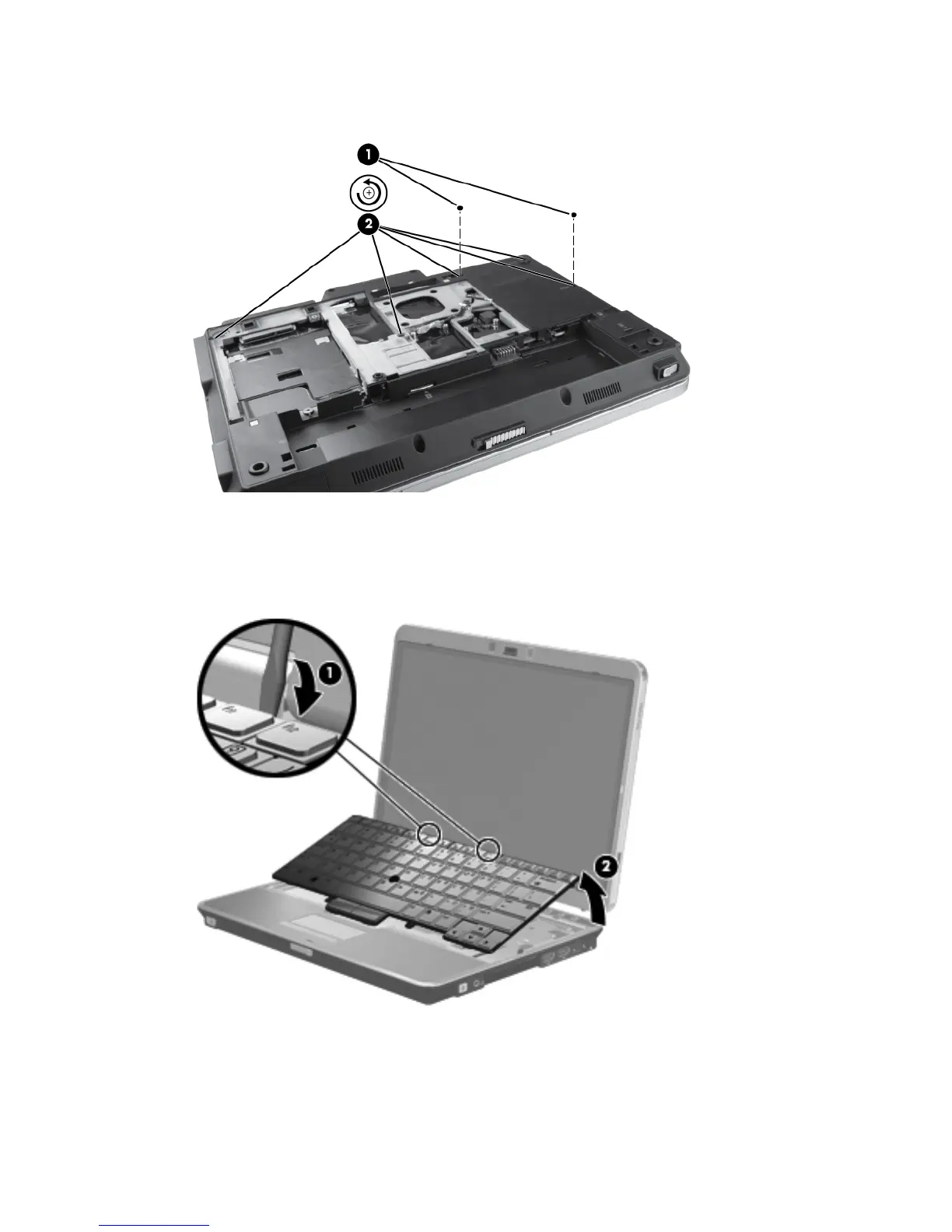

2. Remove the two screw caps (1) and loosen the five captive screws (2) that secure the keyboard
to the computer.
3. Turn the computer right-side up, with the front toward you.
4. Open the display as far as possible.
5. Insert a flat tool under the back edge (1) of the keyboard near the display hinge. Gently lift the
rear edge of the keyboard (2) and disconnect the keyboard.
54 Chapter 4 Removal and replacement procedures
