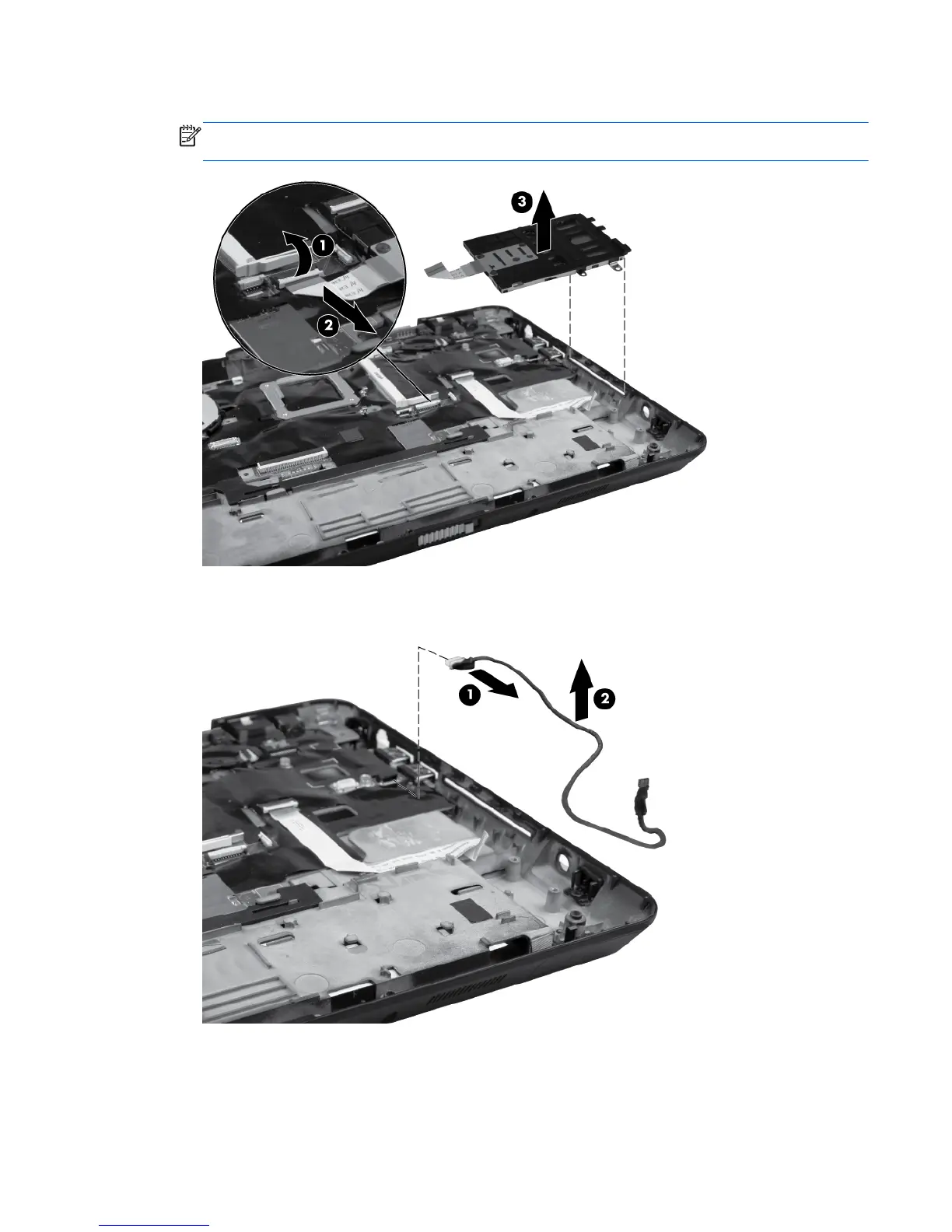

3. Lift the smart card reader out of the chassis (3).
NOTE: Adhesive secures the reader to the base enclosure. You must break the adhesion to
remove the reader.
4. Remove the Bluetooth cable by disconnecting the ZIF cable (1) securing the Bluetooth module
to the system board and thn lift the cable (2).
Reverse this procedure to install the smart card reader.
