l. Remove the system board shield (see System board shield on page 66)
m. Remove the smart card reader (see
Smart card reader on page 74)
When replacing the system board, be sure that the following components are removed from the
defective system board and installed on the replacement system board:
●
Remove the SIM (see
SIM on page 45)
●
Remove the memory modules (see
Primary memory module on page 43 and Secondary
memory module on page 56)
●
Remove the WLAN module (see
WLAN module on page 48)
●
Remove the WWAN module (see
WWAN module on page 51)
●
Remove the modem module (see
Modem module on page 67)
●
Remove the heat sink (see
Fan/heat sink assembly on page 78)
Remove the system board:
1. Position the computer right-side up, with the front toward you.
2. Remove the ExpressCard or ExpressCard slot holder.

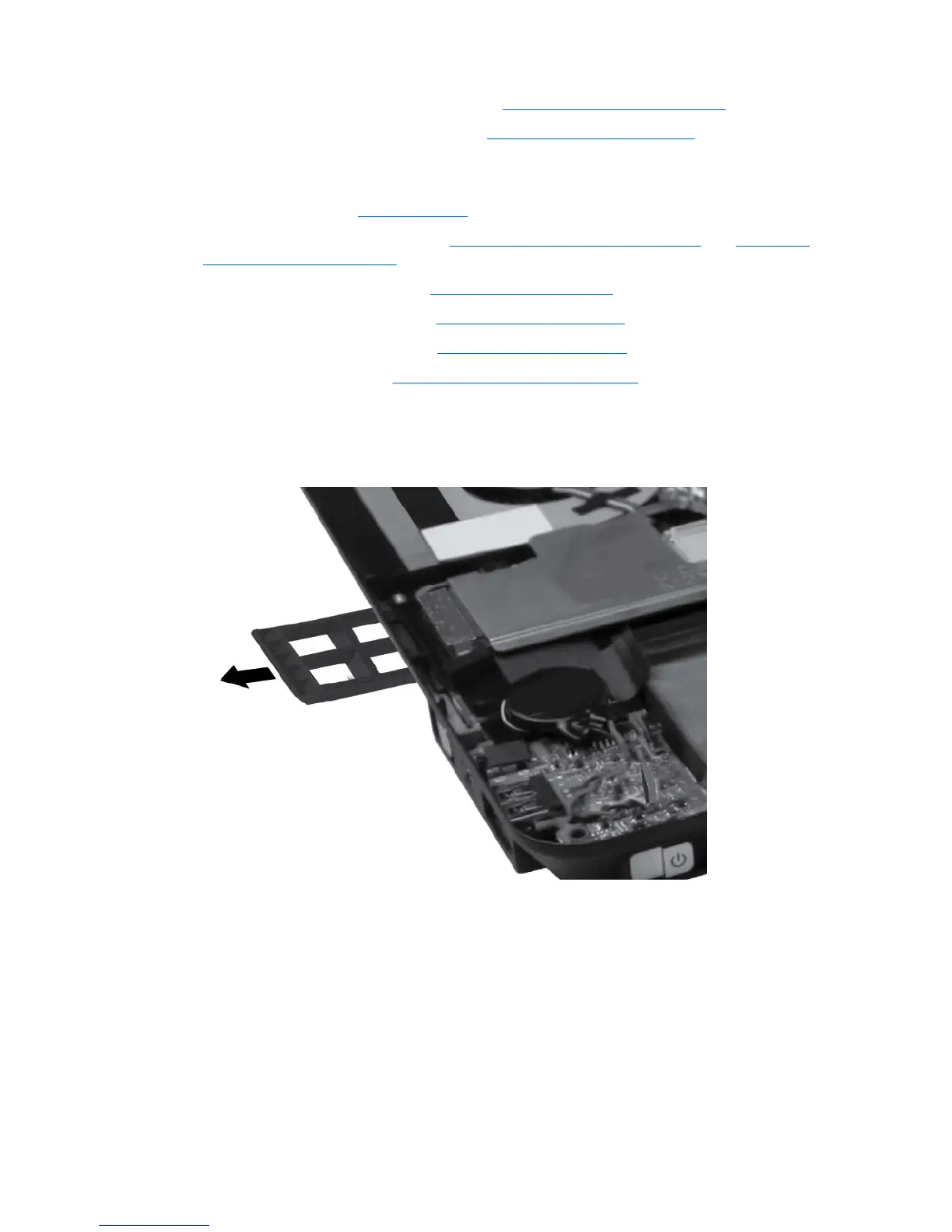

3. Peel back the adhesive strip (2) on the system board to reveal one of the two screws required to
remove the system board.
4. Remove the two Phillips M2.0×4.0 screws (2) that secure the system board to the base
enclosure.
