15.

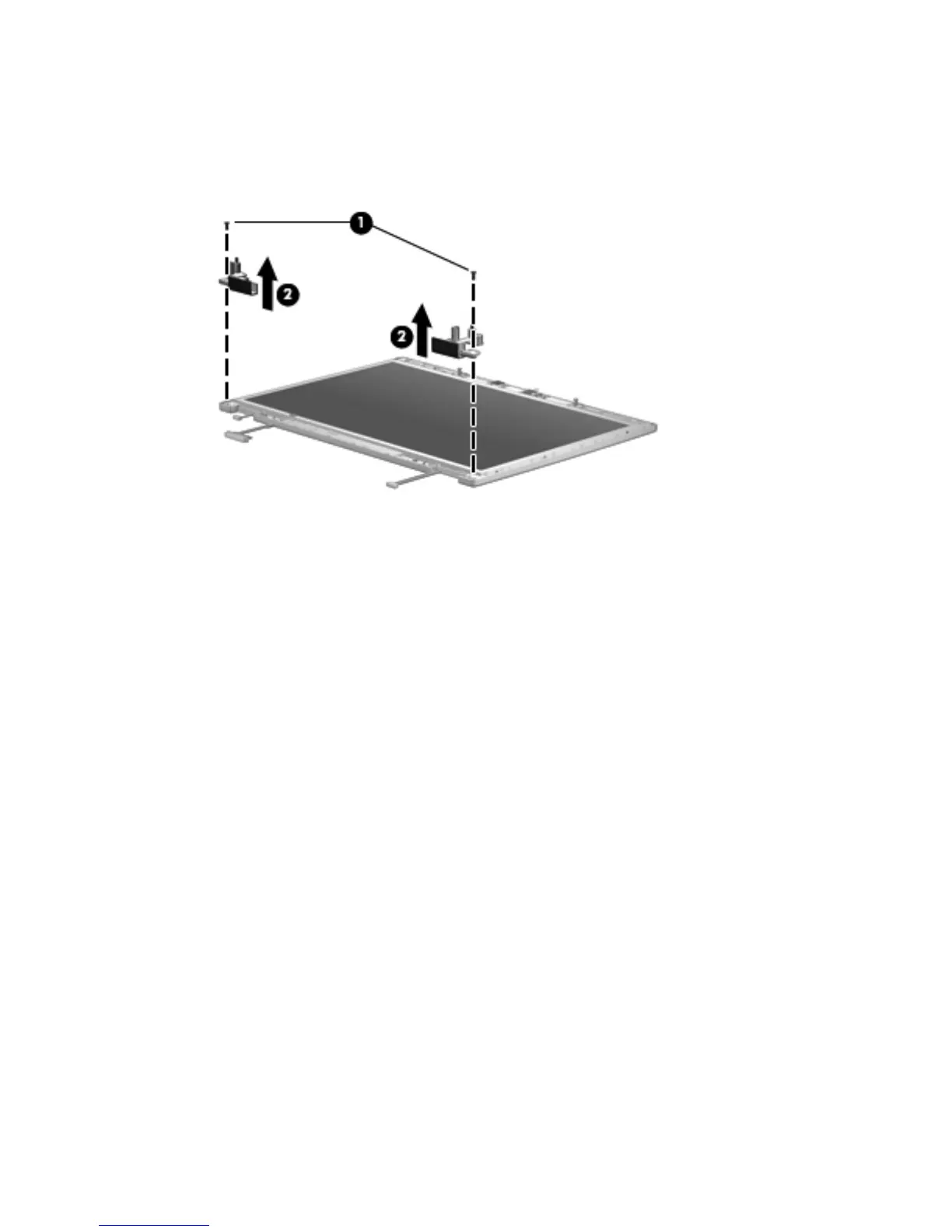

If it is necessary to replace the display hinges, remove the two Phillips PM2.5×7.0 screws (1) that
secure the display hinges to the display enclosure.
16. Remove the display hinges (2). The left and right display hinges are included in the Display Hinge
Kit, spare part number 482967-001.
The display panel is available using the following spare part numbers:
●
623154-001 (for use in computer models equipped with WXGA displays)
●
623155-001 (for use in computer models equipped with WXGA LED displays)
●
623156-001 (for use in computer models equipped with WXGA+ displays)
Reverse this procedure to reassemble and install the display assembly.
Component replacement procedures
89
