Solid-state drive (SSD)
Table 5-2 Solid-state drive descriptions and part numbers
Description Spare part number
1 TB, PCIe, TLC L62292-001
512 GB, PCIe, TLC L62289-001
512 GB, PCIe, self-encrypting drive (SED), Opal 2, TLC L62290-001
512 GB, PCIe, value L62291-001
256 GB, PCIe, NVMe, TLC L62288-001
256 GB, PCIe, NVMe, value L62287-001
256 GB, SATA-3, self-encrypting drive (SED), Opal 2, TLC L62286-001
128 GB, SATA-3, TLC L62285-001
Before removing the solid-state drive, follow these steps:
1. Prepare the computer for disassembly (Preparation for disassembly on page 32).
2. Remove the bottom cover (see Bottom cover on page 32).
3. Disconnect the battery cable from the system board (see Battery on page 45).
Remove the solid-state drive:

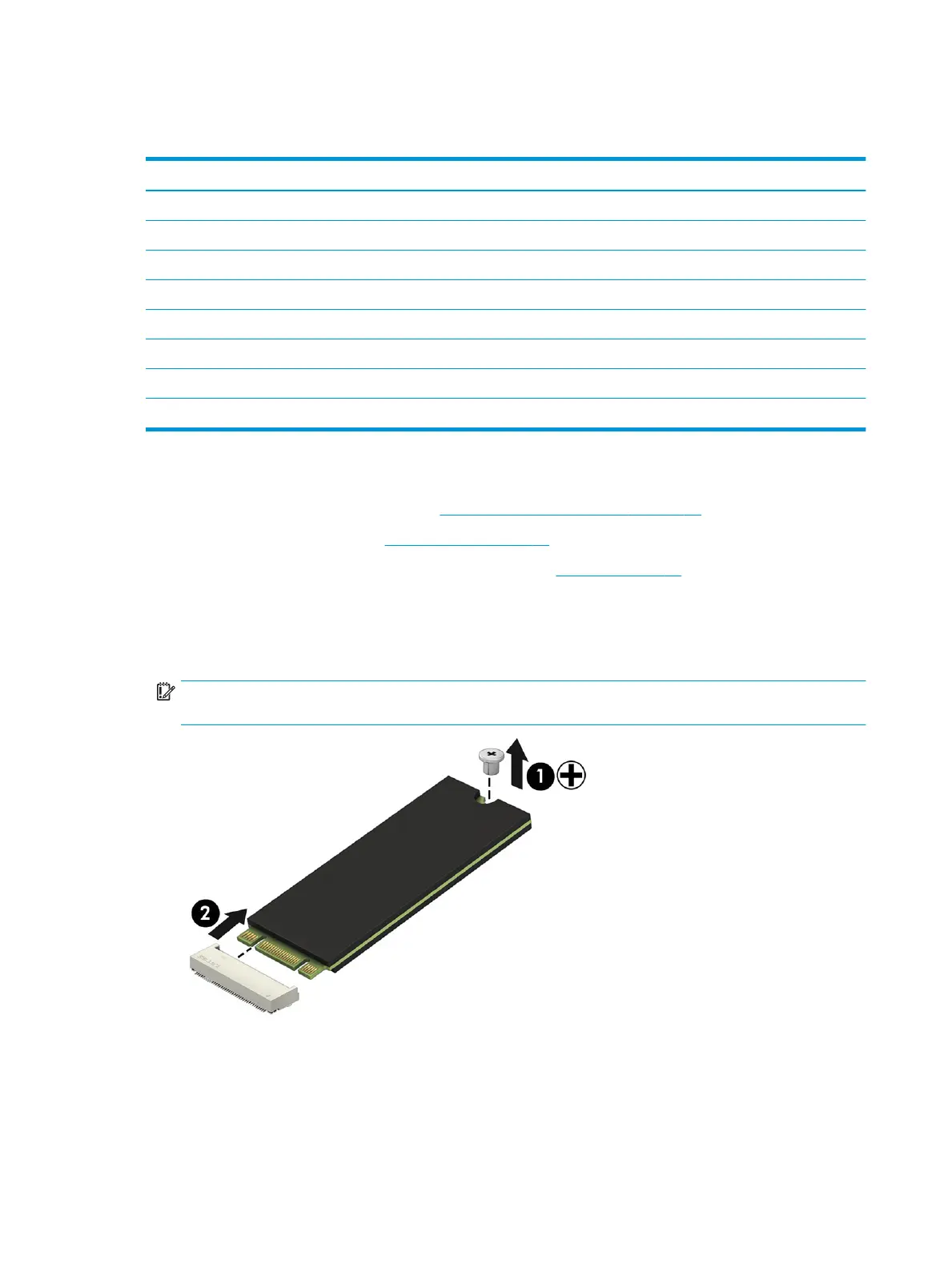

1. Remove the Phillips M2.0 × 2.0 screw (1) that secures the drive to the system board.
2. Remove the drive by pulling it away from the connector (2).
IMPORTANT: When replacing the solid-state drive, remove the shielding from the old drive and install
it on the replacement drive.
Reverse this procedure to install the solid-state drive.
34 Chapter 5 Removal and replacement procedures for Customer Self-Repair parts
