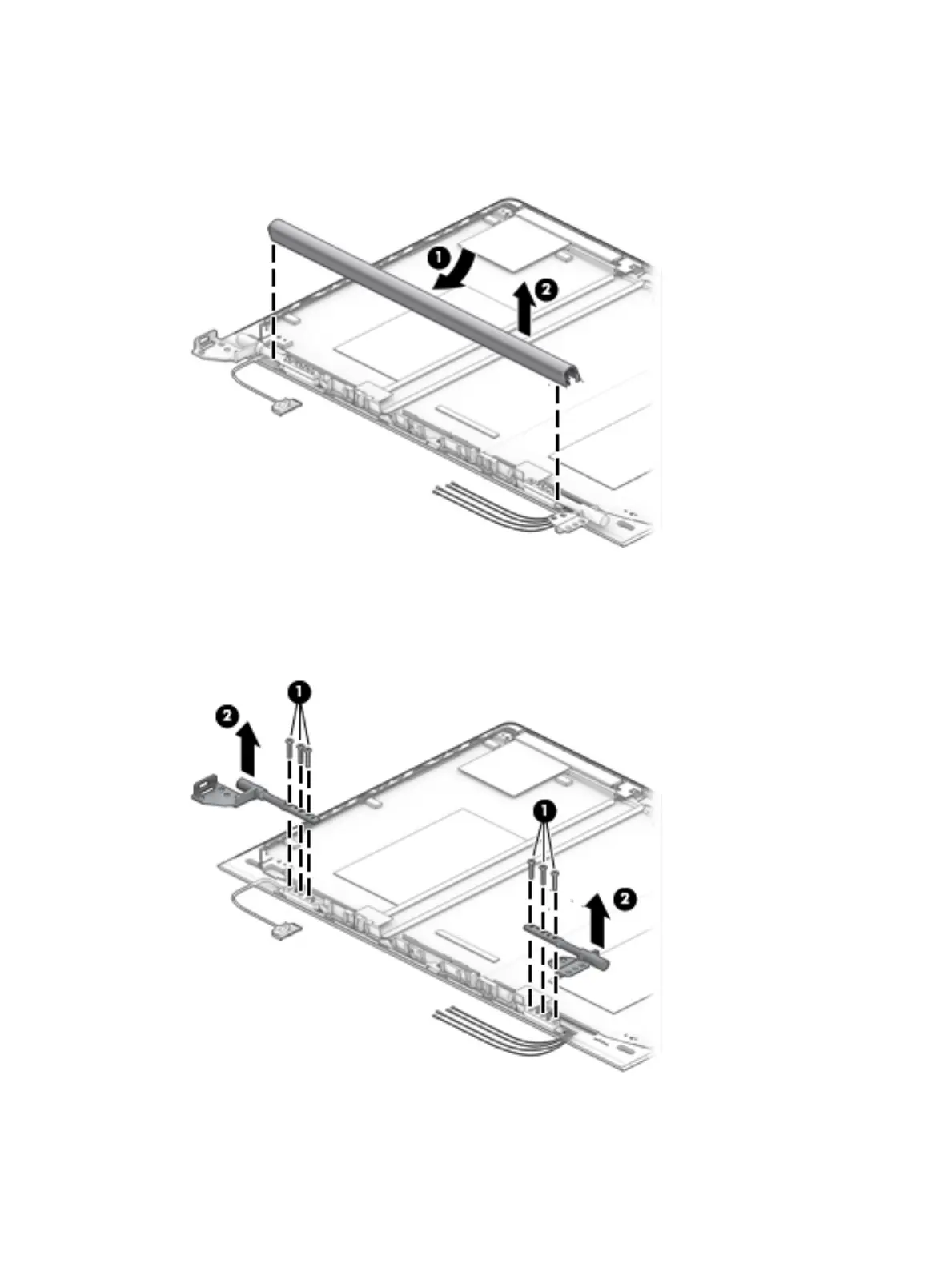

14. If it is necessary to replace the display hinge cover, hinges, or both, rotate top of hinge cover away from
display enclosure to disengage the tabs (1), and then pull the cover o the enclosure (2).
The display hinge cover is available in the Hinge Kit as spare part number L13683-001.
15. If it is necessary to replace the display hinges, remove the three Phillips M2.5 × 10.0 screws that secure
each hinge (1), and then remove the hinges from the display enclosure (2).
Display hinges are available in the Hinge Kit as spare part number L13683-001.
16. If it is necessary to replace the camera cable:
Camera cables are available in the Cable Kit as spare part number L60602-001.
72 Chapter 6 Removal and replacement procedures for authorized service provider parts
