NOTE: The screws are labeled with a keyboard symbol.

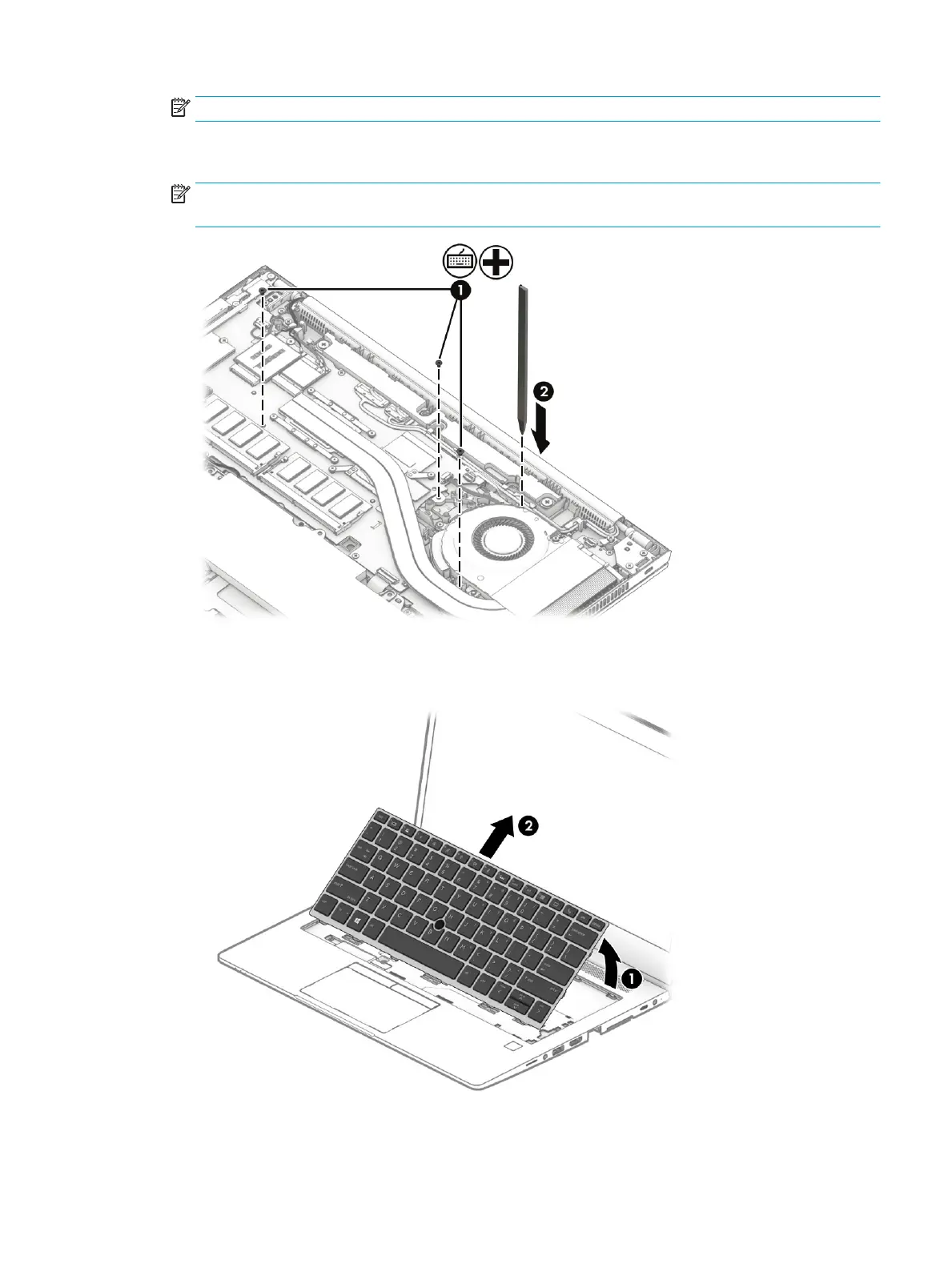

2. Insert a screwdriver or similar thin tool into the release hole near the fan, and then press on the back of
the keyboard until it disengages from the computer (2).
NOTE: Cables connect the bottom of the keyboard to the system board. Make sure not to prematurely
pull the keyboard cables out of the system board connectors.
3. Position the computer upright with the front toward you, and then open the computer as far as possible.
4. Lift to disengage the top of the keyboard (1), and then rotate the keyboard over onto the palm rest (2).
Component replacement procedures 51
