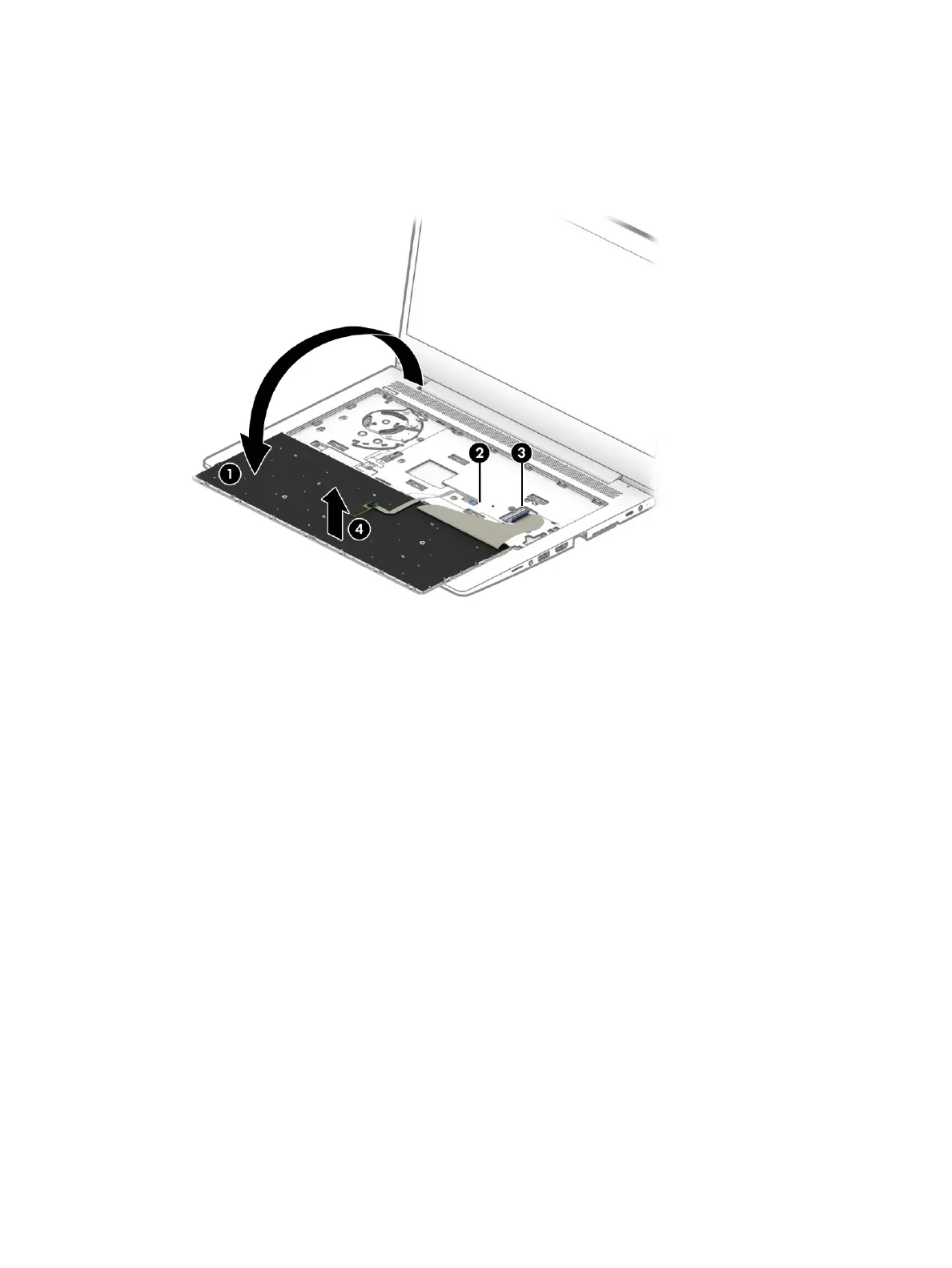

5. With the keyboard resting on the palm rest (1), disconnect the backlight cable from the system board ZIF
connector (2) (select models only).
6. Disconnect the keyboard cable from the system board ZIF connector (3).
7. Remove the keyboard (4).
Reverse this procedure to install the keyboard.
52 Chapter 5 Removal and replacement procedures for Customer Self-Repair parts
