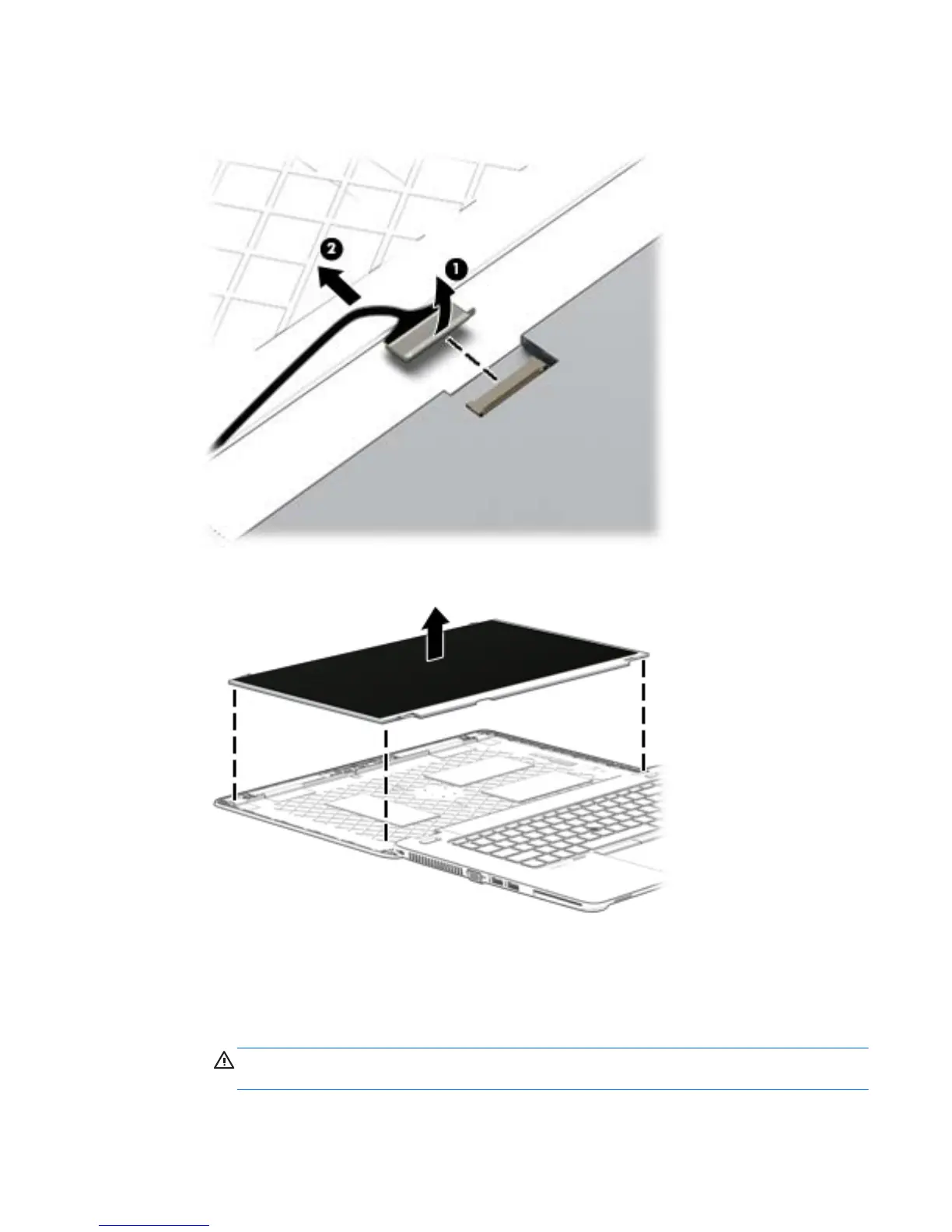

5. On the back of the display panel, lift the tape that secures the display cable to the display panel
(1), and the disconnect the display cable from the panel (2).
6. Lift the display panel from the display enclosure.
7. If it is necessary to replace the webcam/microphone module:
a. Release the tape that secures the webcam cable to the module (1).
b. Disconnect the cable (2) from the module.
CAUTION: Handle the module with caution. The module has a thin profile and is
susceptible to damage when not handled carefully.
Component replacement procedures
69
