TouchPad
Description Spare part number
TouchPad for use in models without an NFC module L14369-001
TouchPad for use in models with an NFC module L19416-001
Before removing the TouchPad, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is o or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet, and
then unplugging the AC adapter from the computer.
4. Remove the bottom cover (see Bottom cover on page 37).
5. Remove the battery (see Battery on page 50).

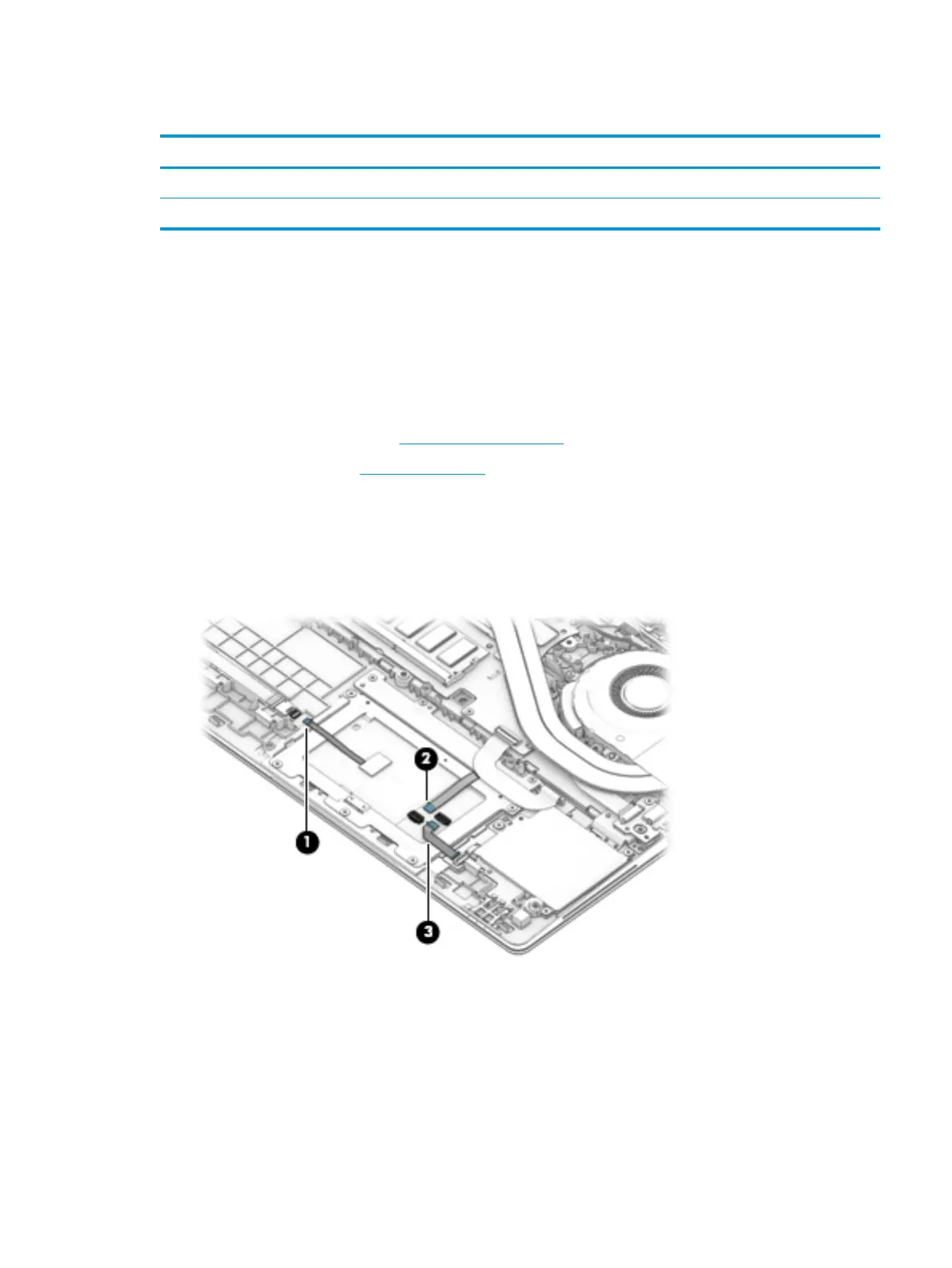

Remove the TouchPad:
1. Disconnect the NFC module cable from the ZIF connector on the NFC module (1).
2. Disconnect the pointing stick module cable from the ZIF connector on the TouchPad (2).
3. Disconnect the card reader cable from the ZIF connector on the TouchPad (3).
4. Remove the ve Phillips M2.0x2.5 screws (1) that secure the TouchPad to the computer.
Component replacement procedures 61
