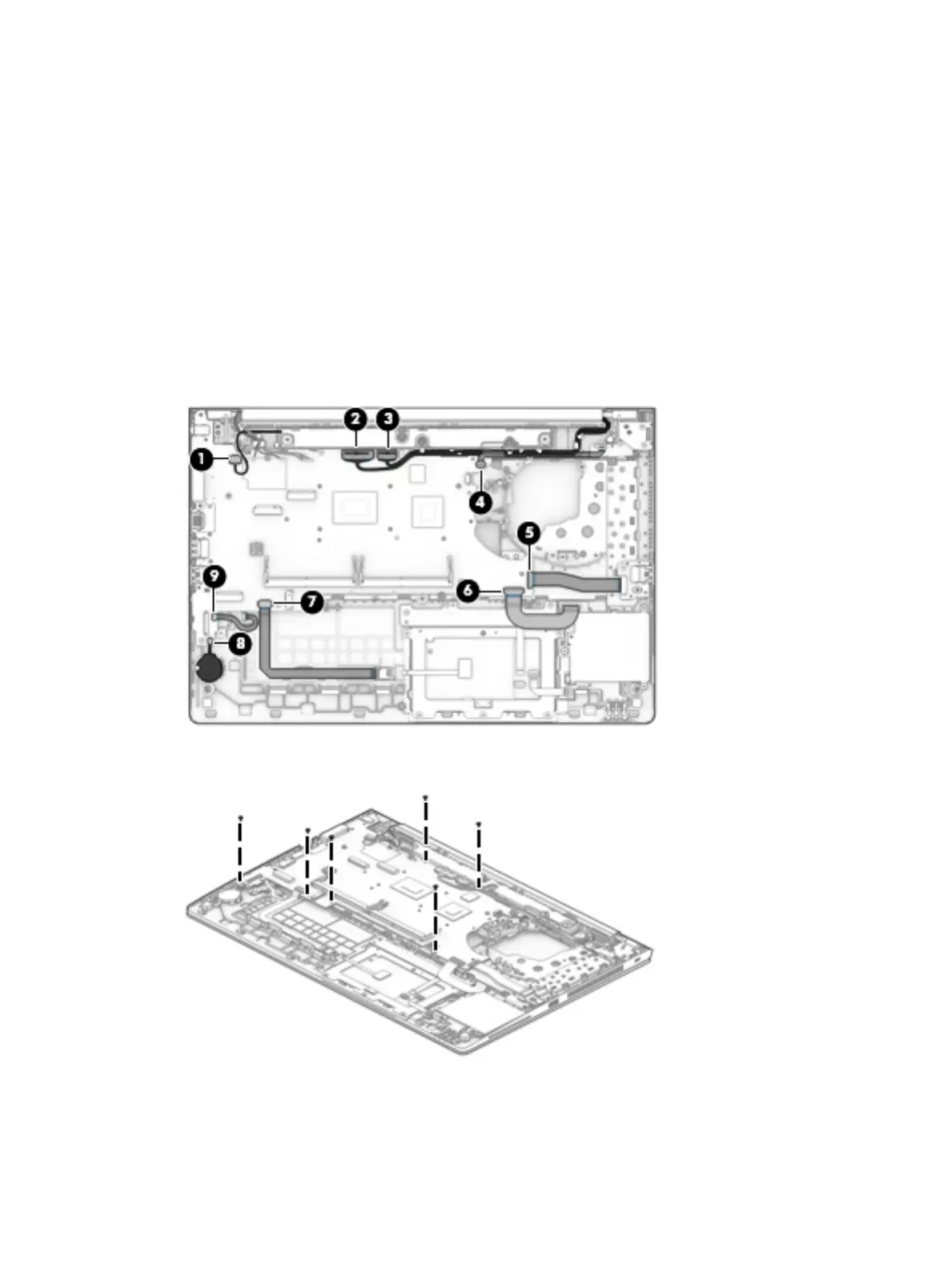

4. Disconnect the following cables from the system board:
(1) Speaker cable
(2) Display cable
(3) Camera cable
(4) Power button board cable
(5) USB cable
(6) Smart card reader cable
(7) NFC module cable
(8) RTC battery cable
(9) Fingerprint reader cable
5. Remove the six Phillips M2.5×3.0 screws that secure the system board to the computer.
6. Lift the right side of the system board up at an angle (1).
70 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
