Fan
Description Spare part number
Fan (includes cable) 686311-001
Before removing the fan, follow these steps:
1. Turn off the computer. If you are unsure whether the computer is off or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2. Disconnect the power from the computer by unplugging the power cord from the computer.
3. Disconnect all external devices from the computer.
4.
Remove the battery (see
Battery on page 81).
5. Remove the service cover (see
Service cover on page 83).

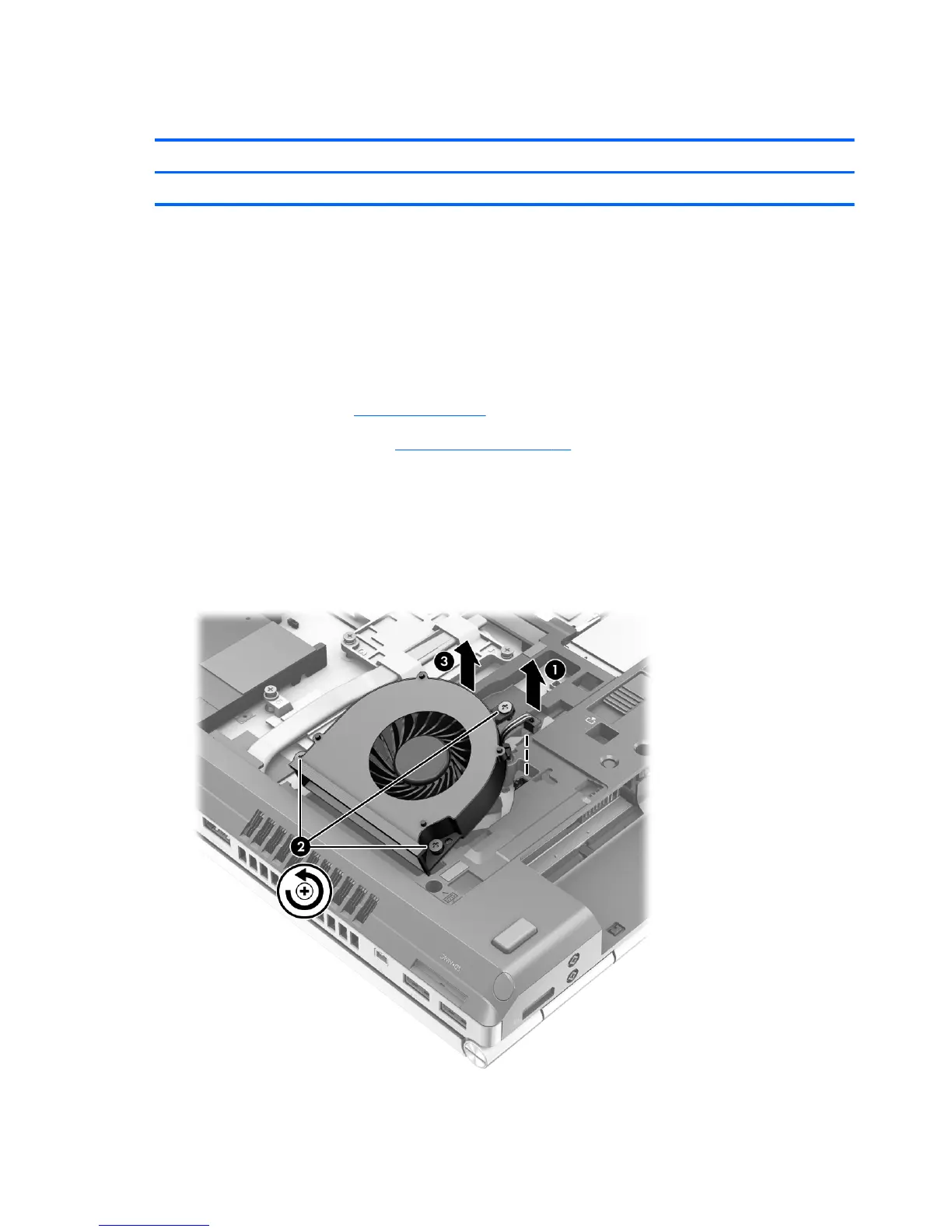

Remove the fan:
1. Disconnect the fan cable (1) from the system board.
2. Loosen the three captive Phillips screws (2) that secure the fan to the base enclosure.
3. Remove the fan (3).
Reverse this procedure to install the fan.
100 Chapter 4 Removal and replacement procedures
