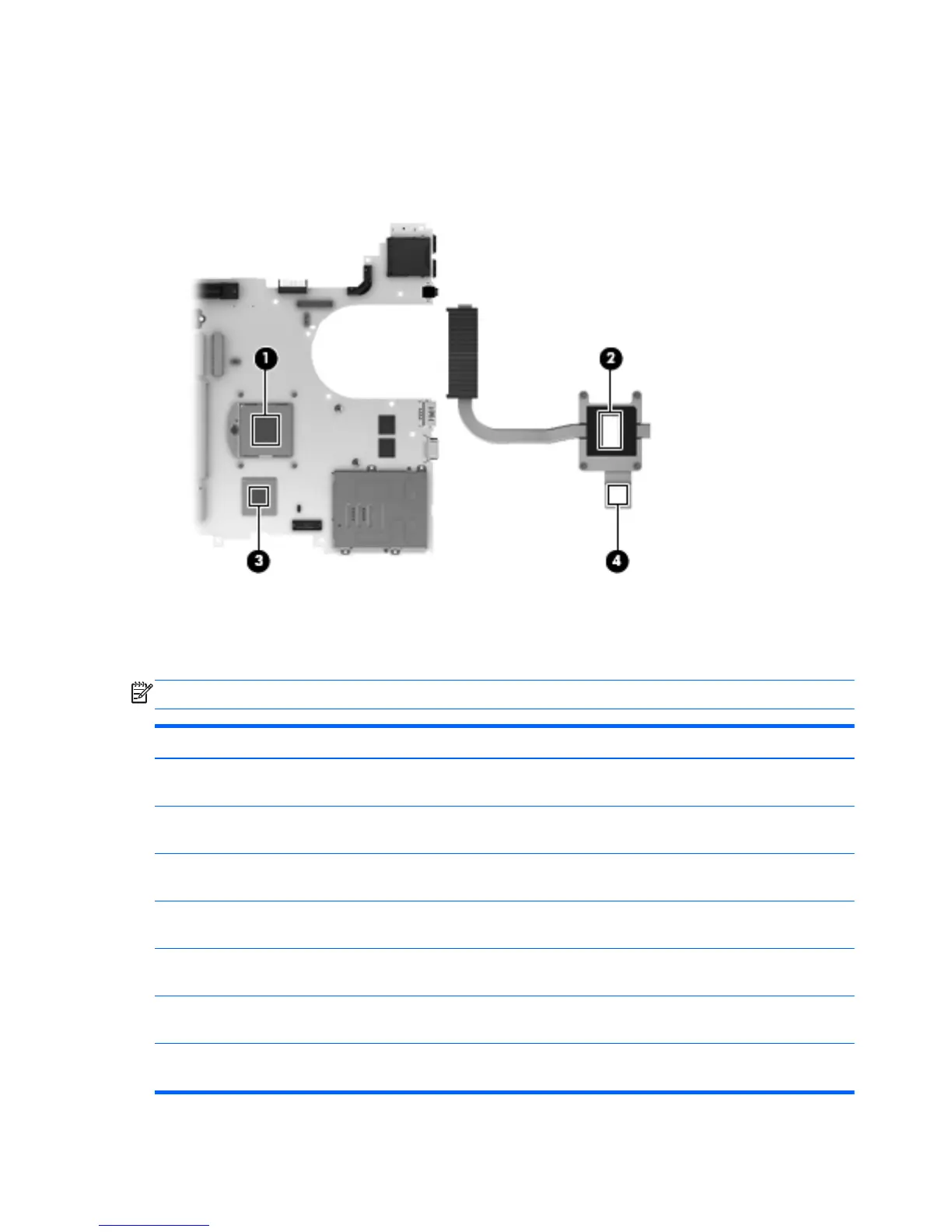

The following illustration shows the replacement thermal material locations on a computer model
equipped with a graphics subsystem with UMA memory.
Thermal paste is used on the processor (1) and the heat sink section (2) that services it
Thermal paste is used on the PCH chip (3) and the heat sink section (4) that services it
Reverse this procedure to install the heat sink.
Processor
NOTE: The processor spare part kit includes replacement thermal material.
Description Spare part number
Intel Quad Core i7-3740QM 2.70-GHz processor (SC turbo up to 3.70-GHz; 1600-MHz FSB,
6.0-MB L3 cache, 45 W) for use only on HP EliteBook 8570p Notebook PC computer models
702840-001
Intel Quad Core i7-3720QM 2.60-GHz processor (SC turbo up to 3.60-GHz; 1600-MHz FSB,
6.0-MB L3 cache, 45 W) for use only on HP EliteBook 8570p Notebook PC computer models
681283-001
Intel Quad Core i7-3630QM 2.40-GHz processor (SC turbo up to 3.40-GHz; 1600-MHz FSB,
6.0-MB L3 cache, 45 W) for use only on HP EliteBook 8570p Notebook PC computer models
702081-001
Intel Quad Core i7-3610QM 2.30-GHz processor (SC turbo up to 3.30-GHz; 1600-MHz FSB,
6.0-MB L3 cache, 45 W) for use only on HP EliteBook 8570p Notebook PC computer models
680646-001
Intel Dual Core i7-3540M 3.00-GHz processor (SC turbo up to 3.70-GHz; 1600-MHz FSB, 4.0-
MB L3 cache, 45 W) for use on all computer models
710787-001
Intel Dual Core i7-3520M 2.90-GHz processor (SC turbo up to 3.60-GHz; 1600-MHz FSB, 4.0-
MB L3 cache, 35 W) for use on all computer models
681954-001
Intel Dual Core i5-3380M 2.90-GHz processor (SC turbo up to 3.60-GHz; 1600-MHz FSB, 3.0-
MB L3 cache, 35 W) for use on all computer models
708762-001
130 Chapter 4 Removal and replacement procedures
