HP EliteBook 8570p - Page 142

5.

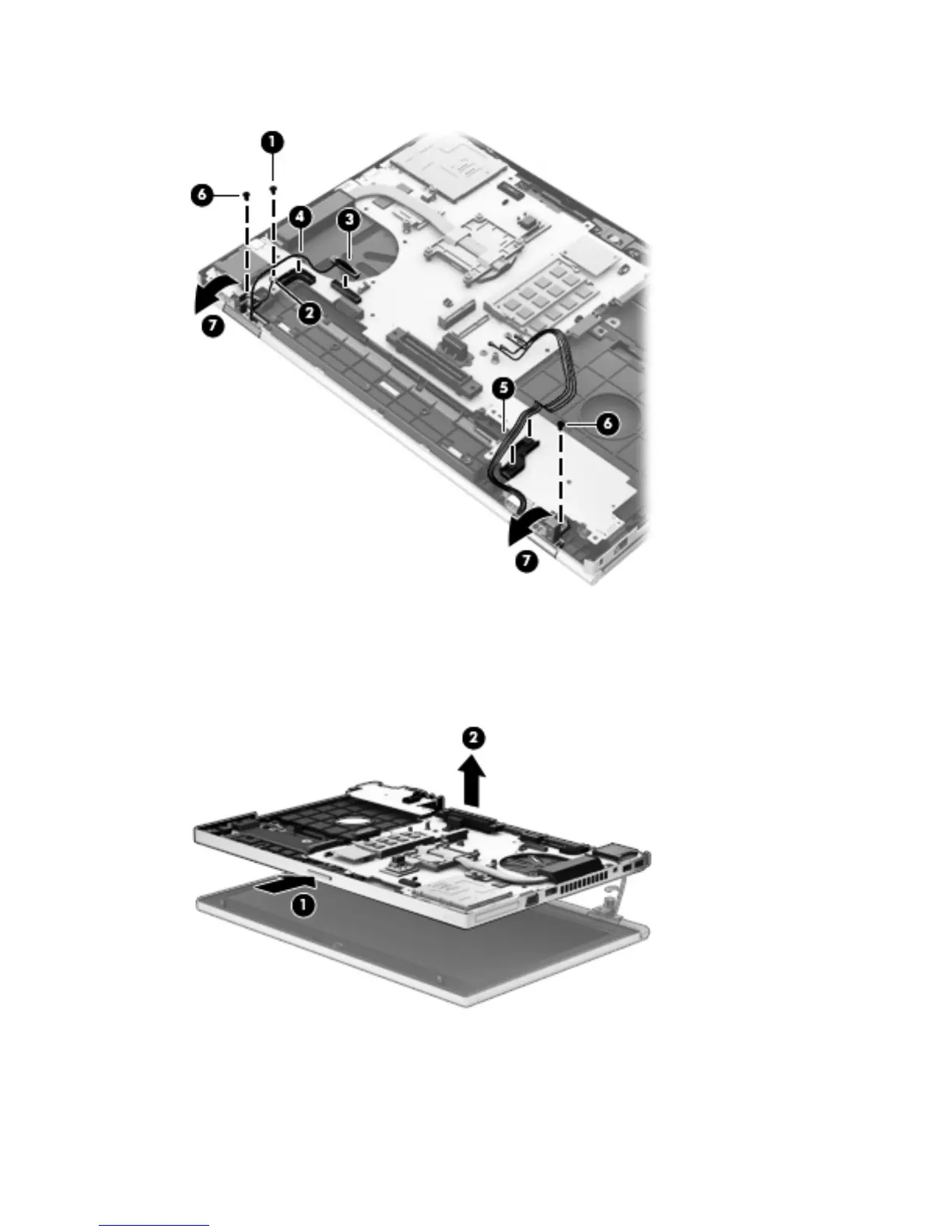

Swing the display hinges (7) up and back until the top cover is free for removal.
6. Position the computer with the front toward you.
7.
Press the display release latch (1) to release the display assembly from the top cover.
8. Remove the computer (2) from the display assembly.
134 Chapter 4 Removal and replacement procedures
