4.

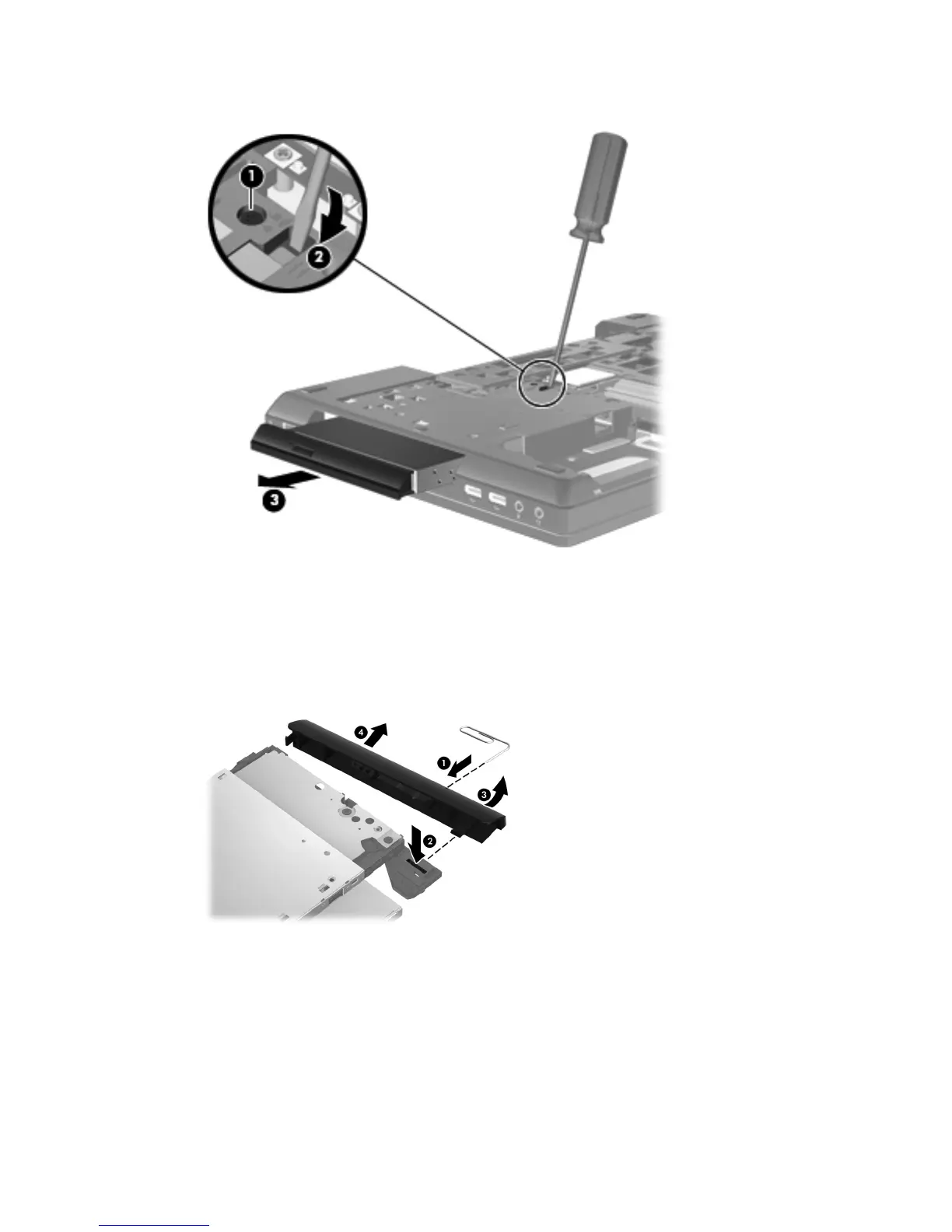

Remove the optical drive (3) from the computer.
5. If it is necessary to replace the optical drive bezel, use a thin tool or an unbent paper clip (1) to
release the optical drive tray.
6.
Use a flat-blade screw driver or similar tool to press on the optical drive bezel tab (2), and then
release the left side of the optical drive bezel (3).
7. Remove the optical drive bezel (4).
8. If it is necessary to replace the optical drive bracket, position the optical drive with the rear panel
toward you.
9. Remove the three Phillips PM2.0×3.0 screws (1) that secure the optical drive bracket to
the optical drive.
Component replacement procedures
85
