HP EliteBook Revolve 810 G1 - Page 57

5.

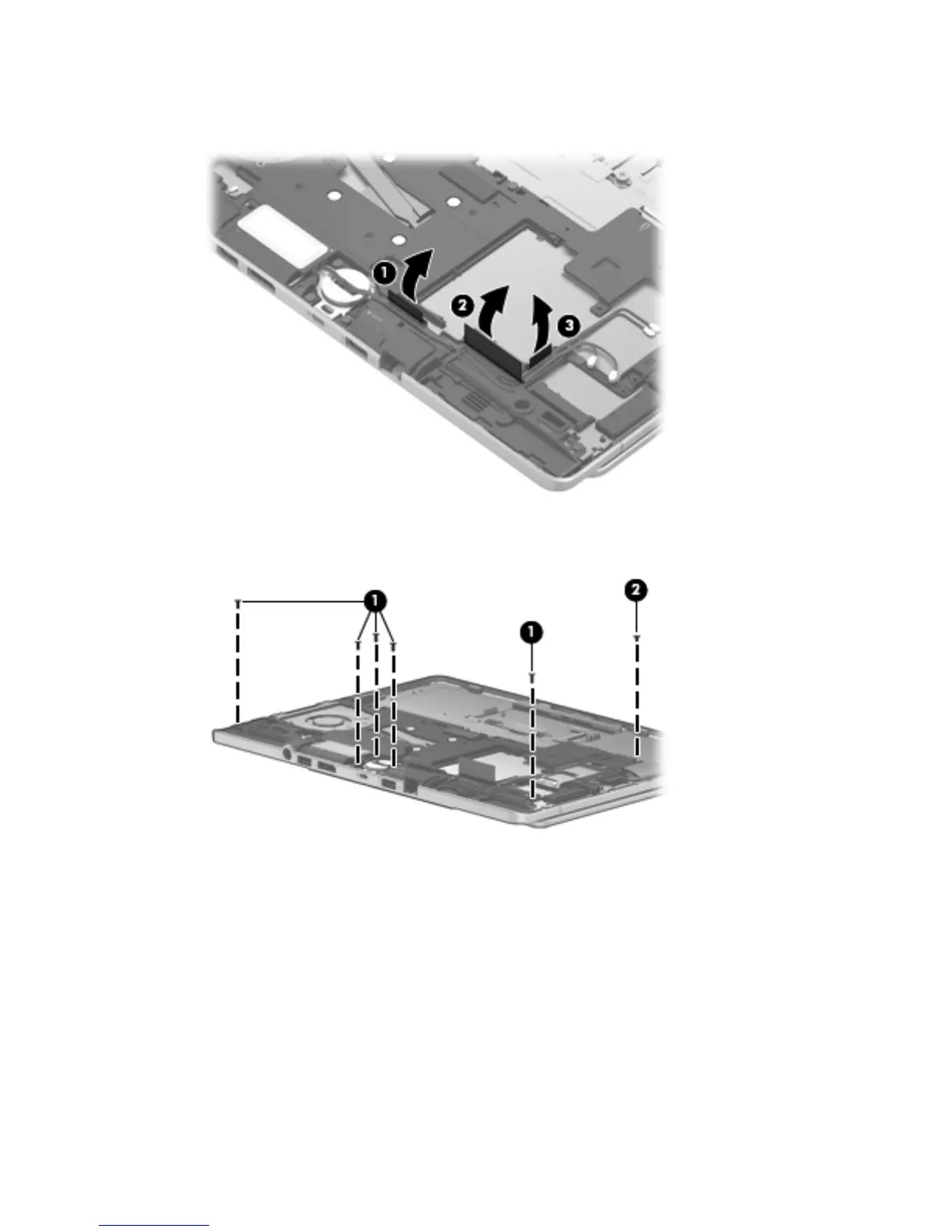

Release the tape (2) and (3) that secures the WWAN antenna cables and the WLAN antenna
cables.
6. Remove the five Torx T8M2.0×5.65 screws (1) and the Torx T8M2.0×2.5 screw (2) that secure
the bottom cover to the computer.
Component replacement procedures
49
