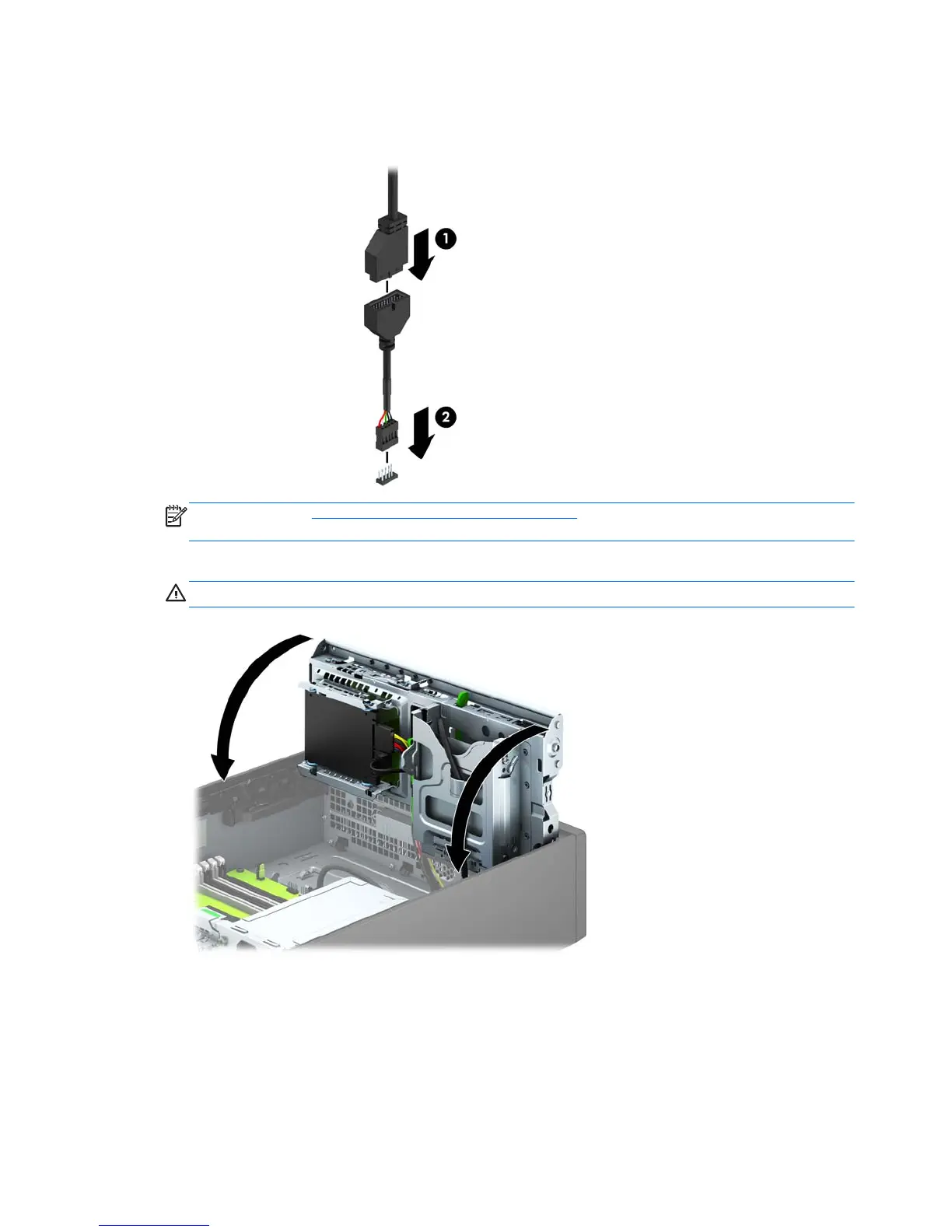

11. If installing a USB 3.0 media card reader, you must use the USB 3.0 to USB 2.0 adapter (1) and
connect the adapter cable from the media card reader to the USB 2.0 connector on the system
board labeled MEDIA (2).
NOTE: Refer to System board connections on page 13 for an illustration of the system board
drive connectors.
12. Rotate the drive cage back down to its normal position.
CAUTION: Be careful not to pinch any cables or wires when rotating the drive cage down.
13. Replace the front bezel.
14. Replace the computer access panel.
15. If the computer was on a stand, replace the stand.
16. Reconnect the power cord and any external devices, then turn on the computer.
17. Lock any security devices that were disengaged when the access panel was removed.
28 Chapter 2 Hardware upgrades
