HP EliteDesk 705 G1 Hardware Reference Guide

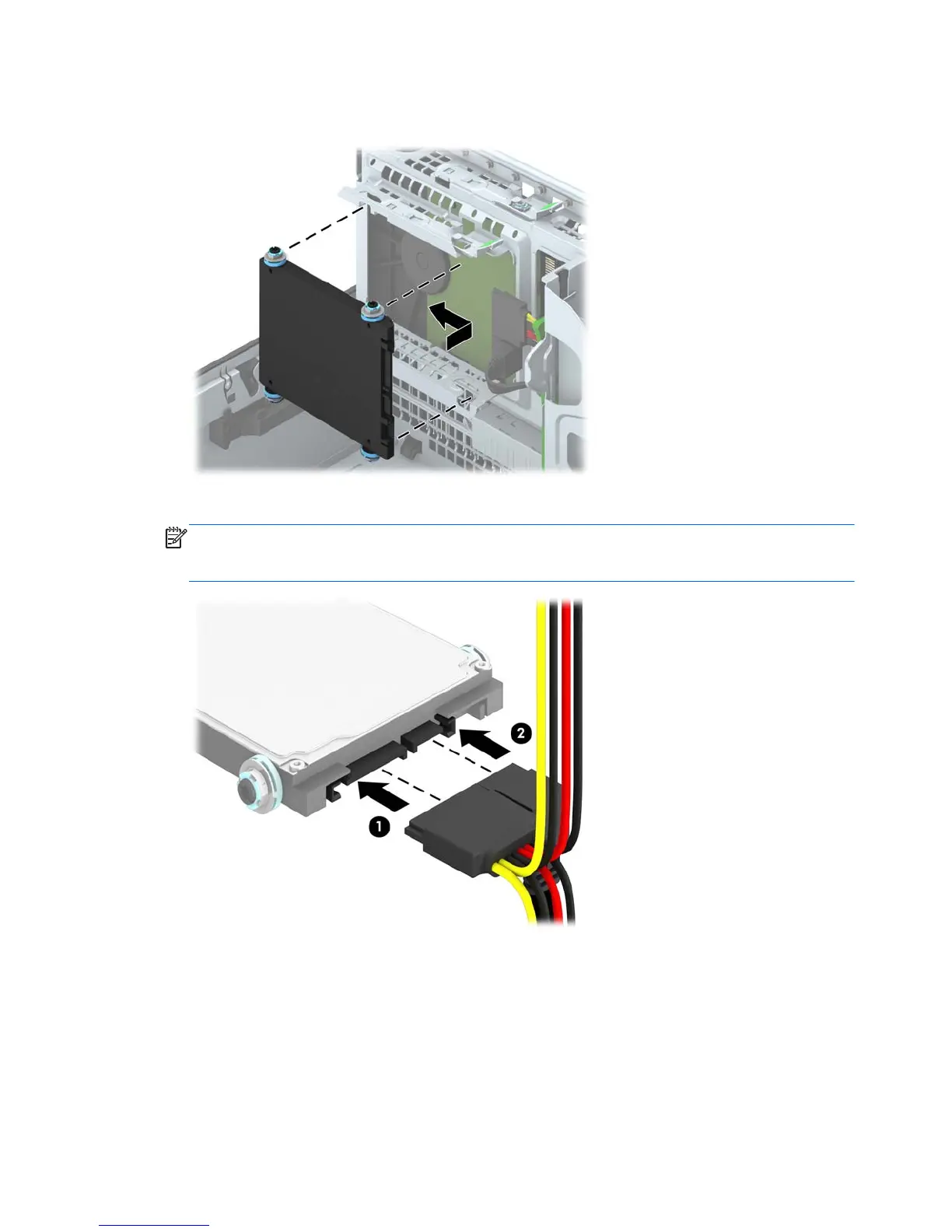

9. Align the guide screws on the drive with the J-slots on the sides of the drive bay. Press the drive
up into the drive bay then slide it forward until it locks in place.
10. Connect the power cable (1) and data cable (2) to the back of the hard drive.
NOTE: If the 2.5-inch hard drive is the primary drive, connect the data cable to the dark blue
SATA connector labeled SATA0 on the system board. If it is a secondary drive, connect the data
cable to one of the light blue SATA connectors on the system board.
38 Chapter 2 Hardware upgrades

HP EliteDesk 705 G1 Specifications

General

Memory	Up to 32 GB DDR3 SDRAM
Processor	AMD A-Series APUs (A10, A8, A6, A4)
Storage	2TB HDD or 256GB SSD
Graphics	Integrated AMD Radeon Graphics (depending on APU)
Operating System	Windows 8.1
Form Factor	Small Form Factor
Audio	Realtek ALC221, High Definition Audio
Ports	USB 2.0, USB 3.0, VGA, DisplayPort
Expansion Slots	1 PCIe x1; 1 PCIe x16; 1 PCI
